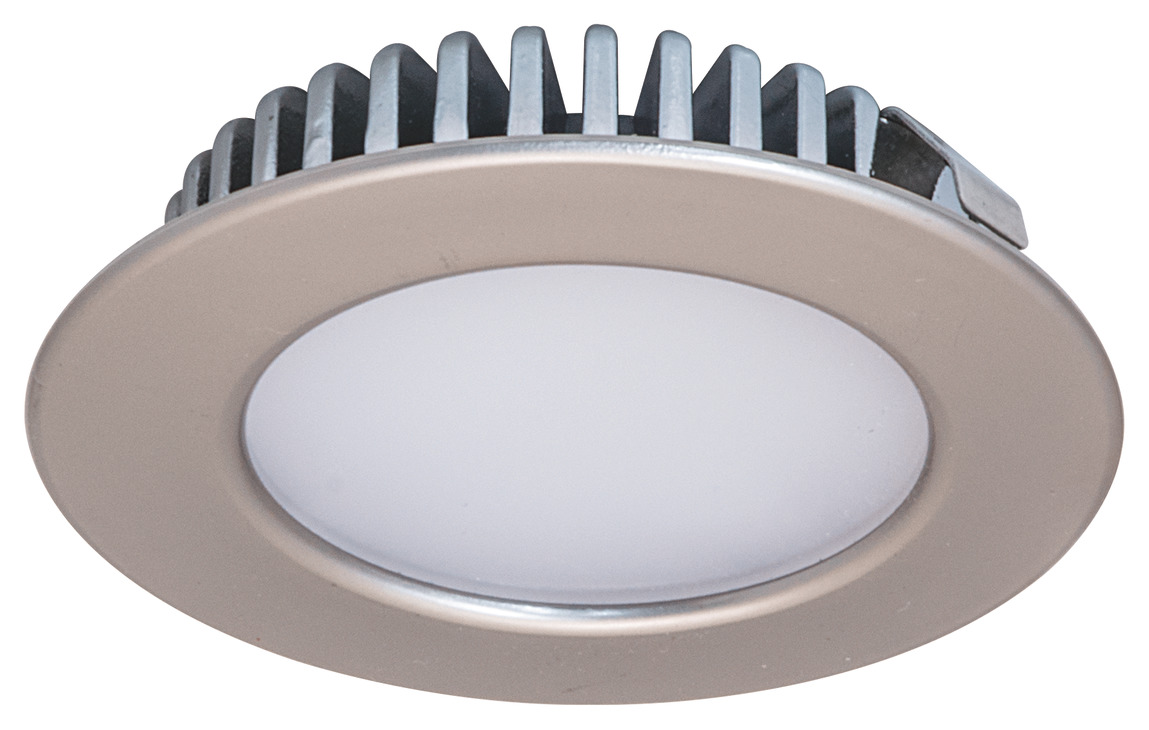

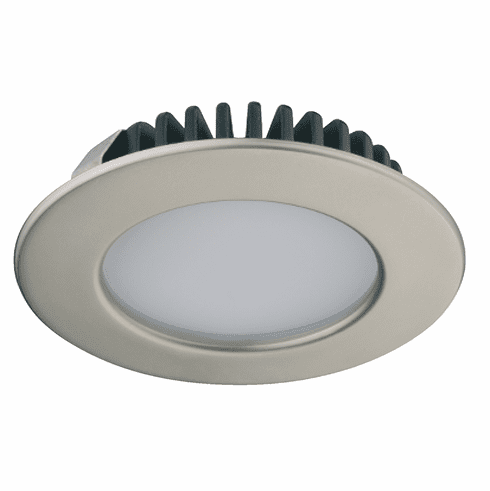

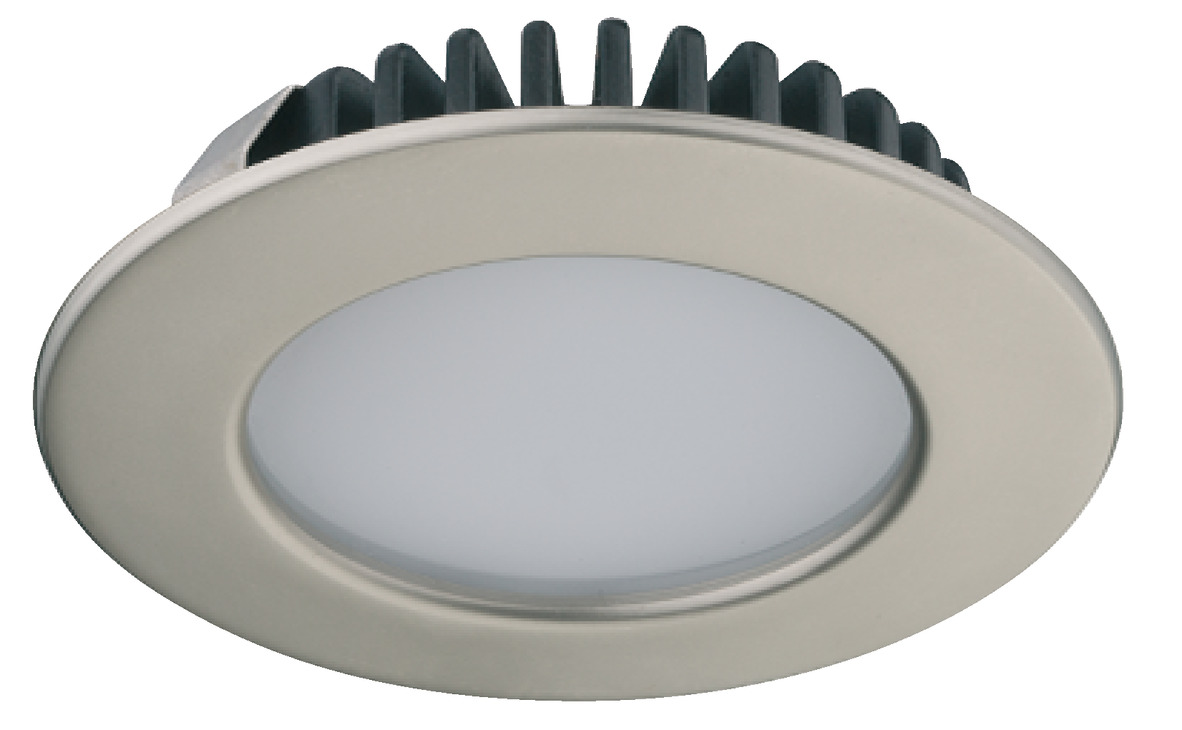

Hafele 833.72.286 Recess/Surface Mounted Downlight, Loox LED 2020, 12 V Matt nickel, cool white 5000 K, 3.2 W,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.286

  Product Title: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2020, 12 V, Drill hole ?: 55 mm (2 3/16"), Matt nickel, cool white 5000 K, 3.2 W

  Category: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2020, 12 V, Drill hole ?: 55 mm (2 3/16")

  Item Details …

  - High-quality metal housing

  - Splash proof for use in wet rooms

  - Nominal voltage : 12.00 V

  - Wattage : 3.20 W

  - Drill hole ุ : 55.00 mm

  - Model : LED 2020

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Degree of protection with surface mounted housing is IP 20

  - Version : Suitable for wet rooms

  - Energy efficiency class : G

  - Drill hole ุ : 2 3/16"

  - Height (inch) : 9/16"

  - Cable length : 78 3/4"

  - Dimmable : yes

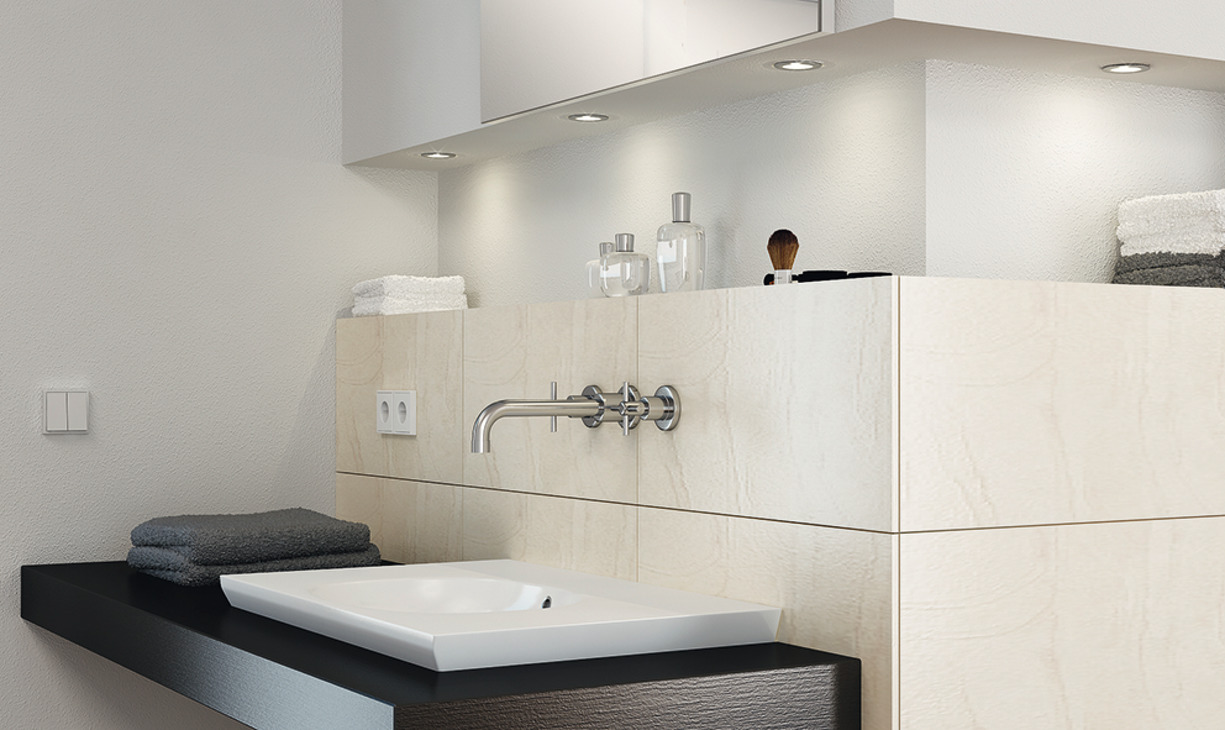

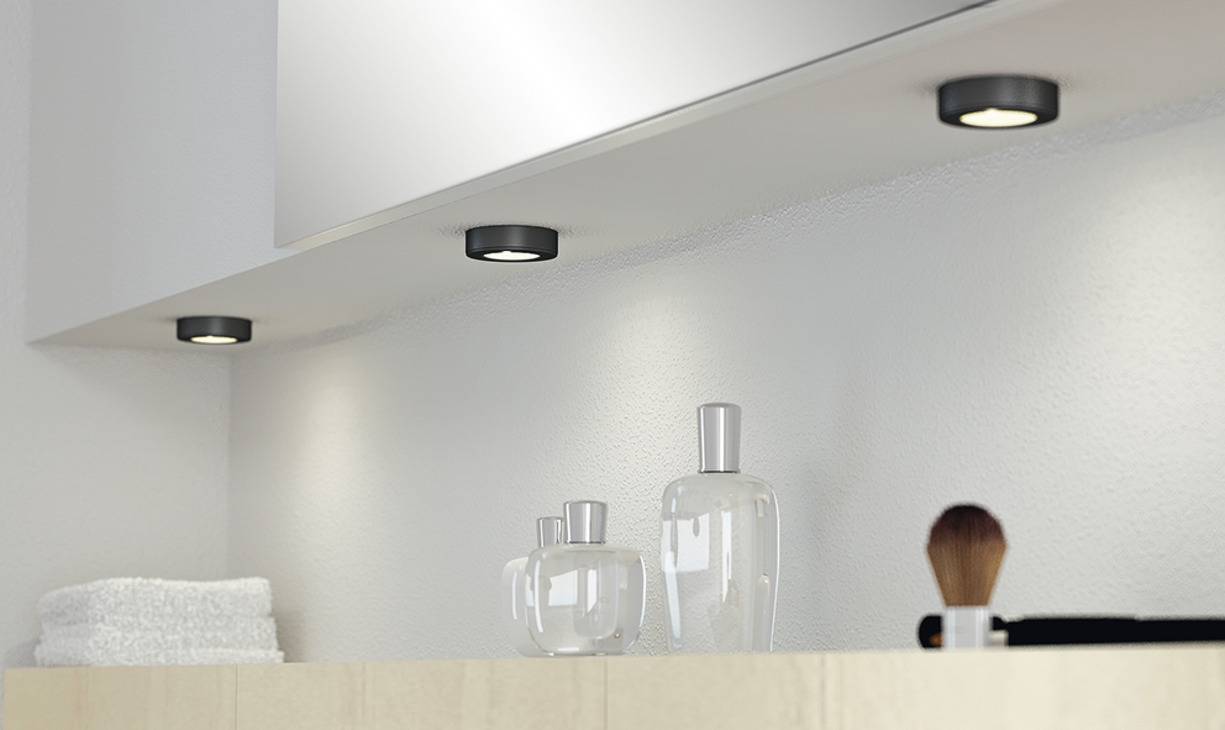

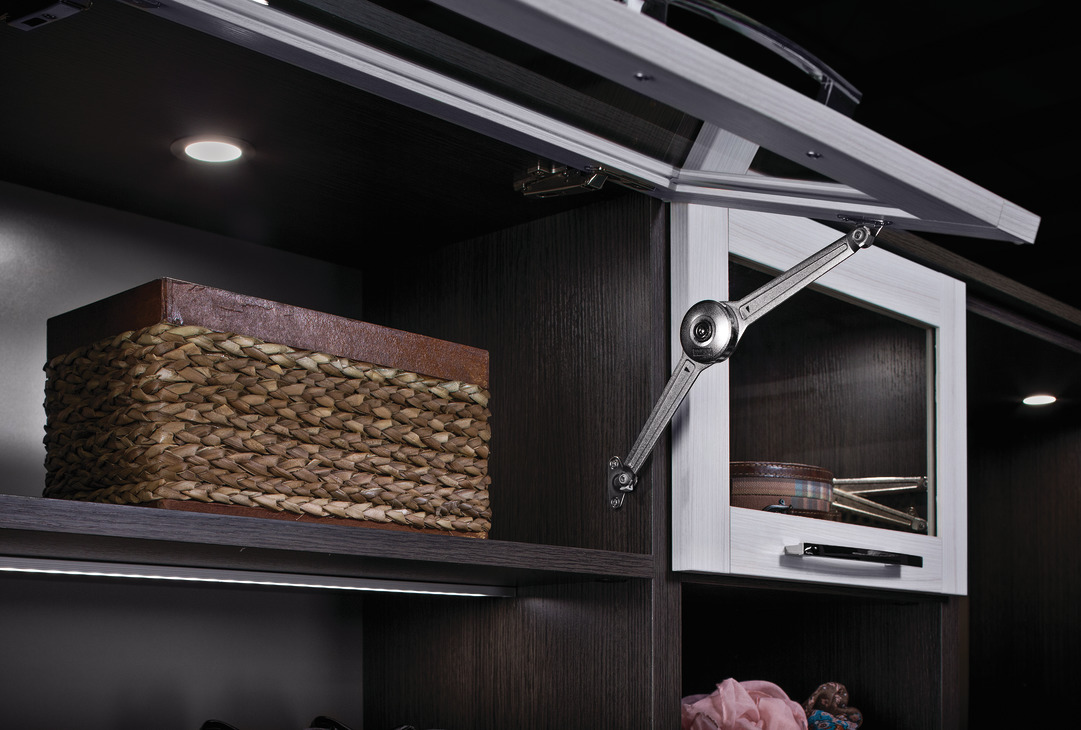

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Supplied with:

  - (78 3/4") 2m lead


  Additional Information …

  The degree of protection IP44 is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2020

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Surface Mounted Ring, for Loox LED 2020/2047/2048/3038/3039
  • Distributor, Hไfele Connect Mesh 12 V with switching function 2-pin (monochrome)
