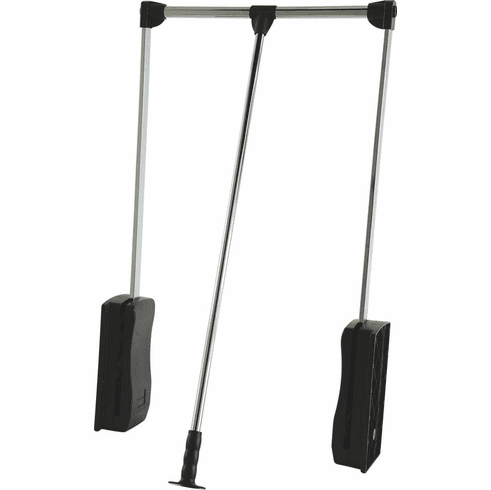

Hafele 805.31.223 Wardrobe Lift, 33 lbs. Weight Capacity For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), Chrome

Product Information

• Description

  Hafele 805.31.223 Wardrobe Lift, 33 lbs. Weight Capacity

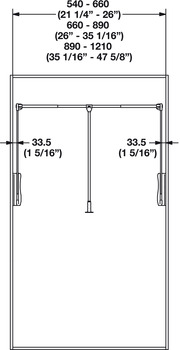

  For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), Chrome



  Version : With adjustment feature for different widths of closets.

  Installation : For attachment to closet sides with screws.

  Diameter : Wardrobe tube: (7/8") 22 mm

  Height : (33 1/16") 839 mm

  Load bearing capacity : (33 lbs.) 15 kg

  Material : Arms and pole: Steel
  Housing: Plastic

  Color : Housing: Black



  Supplied with :

  Mounting hardware



  Optional items:
  Steel Pole, for Wardrobe Lifts


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.96-4.97.pdf

  Hafele 805.31.223, 805-31-223, 80531223, 805.31
