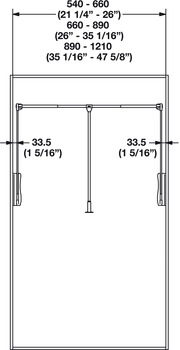

Hafele 805.31.203 Wardrobe Lift, 26 lbs. Weight Capacity For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 805.31.203

  Product Title: Wardrobe Lift, 26 lbs. Weight Capacity, For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), chrome

  Category: Wardrobe Lift, 26 lbs. Weight Capacity,

  Item Details …

  - Adjustable width

  - Optional poles are available for higher installation

  - Ergonomic handle

  - Reinforced T-bracket

  - Bumpers attached to add protection to the housing when lowering the clothes bar

  - Spacers included to provide optional distance between the back wall the hangers

  - Load bearing capacity : 12 kg

  - Load bearing capacity : 26 lbs

  - Diameter (inch) : Wardrobe tube: 7/8"

  - Height (inch) : 33 1/6"

  - Material : Arms and pole: SteelHousing: Plastic

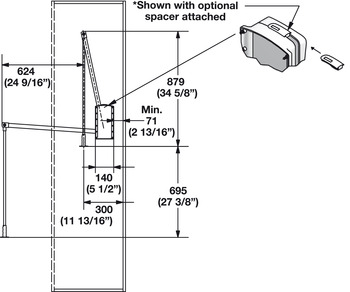

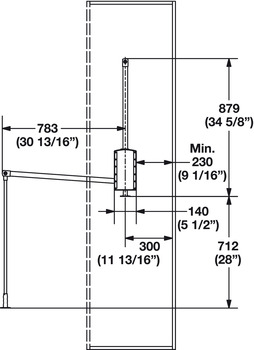

  - Min. installation height : 909.00 mm

  - Installation : Attaches to closet sides with screws

  - Supplied with:

  - Mounting hardware
