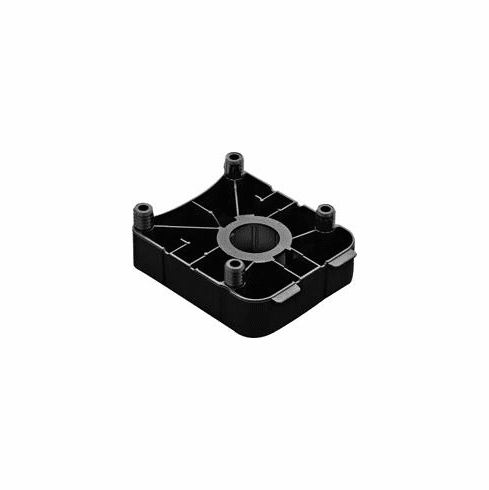

Hafele 637.79.300 Square Mounting Plate, for 78 mm Adjustment Foot/Tube Press-fit

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.79.300

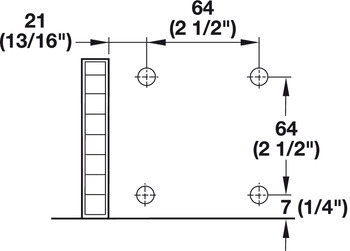

  Product Title: Square Mounting Plate, for Ø78 mm Adjustment Foot/Tube, Press-fit

  Category: Square Mounting Plate, for Ø78 mm Adjustment Foot/Tube,

  Item Details …

  - Load bearing capacity : 353 lbs

  - Material : Plastic

  - Color/finish : Black

  - Supplied with:

  - 4 plates

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.28



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.22-6.27.pdf

  Hafele 637.79.300, 637-79-300, 63779300, 637.79


  Specifications/Hafele Catalog - Page# FC6.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

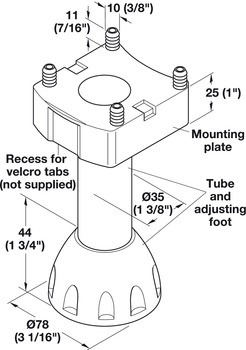

  Adjustment Foot/Tube, Ø78 mm (choose one):


  • 80 mm (3 1/8") base height 100 mm (4") base height 120 mm (4 3/4") base height 150 mm (6") base height

    637.80.350 637.80.351 637.80.352 637.80.353

    Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Plinth profile, with sealing lip

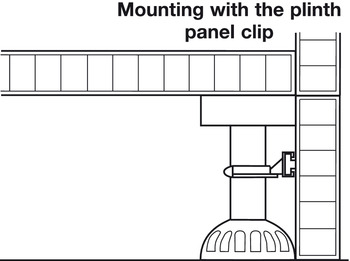

  • Plinth Panel Clip, for Ø78 mm Adjustment Foot/Tube
  • Plinth Panel Clip, for Ø78 mm Adjustment Foot/Tube, Groove Mounted

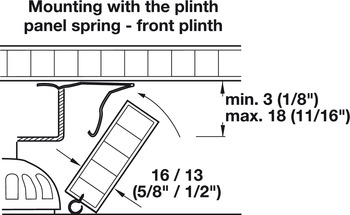

  • Plinth Panel Spring, for Front Plinth
