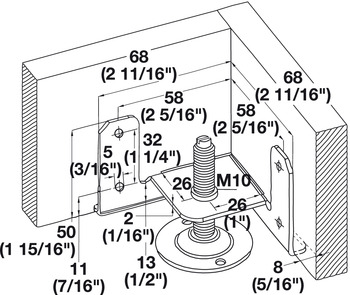

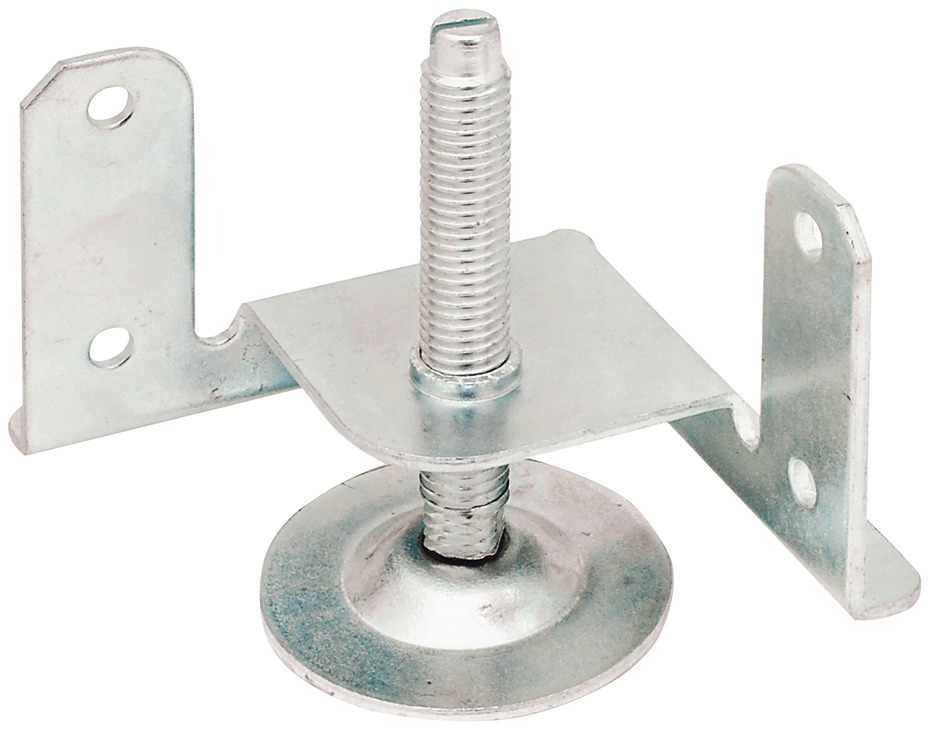

Hafele 637.63.900 Base Leveler, with Supporting Bracket Load-bearing capacity 150 kg (330 lbs.)

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.63.900

  Product Title: Base Leveler, with Supporting Bracket, Load-bearing capacity 150 kg (330 lbs.)

  Category: Base Leveler, with Supporting Bracket, Load-bearing capacity 150 kg (330 lbs.)

  Item Details …

  - Finish/Color : Zinc Plated

  - Adjustment facility : +50 mm (2")

  - Load bearing capacity : 330 lbs

  - Material : Steel

  - Color/finish : Zinc-plated

  - Drive : Hexagon socket SW5 at top

  - Supplied with:

  - M10 x 70 (2 3/4”) bolt with slotted head

  - Base plate Ø45 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.75



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.57-6.65.pdf

  Hafele 637.63.900, 637-63-900, 63763900, 637.63
