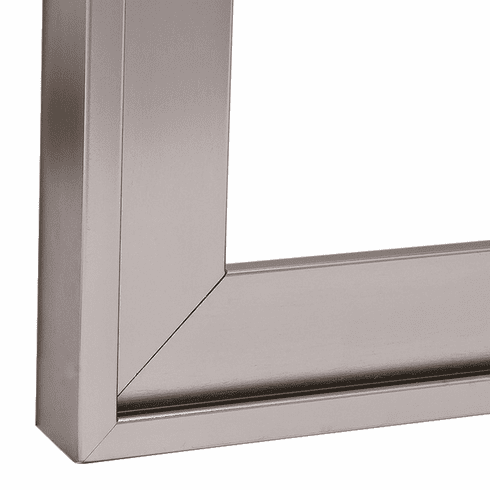

Hafele 563.26.112 Aluminum Door Frame Profile, Cut-To-Size Quick door aluminum frame doors, Stainless steel look
Product Information
Description
Manufacturer: Hafele
Item: 563.26.112
Product Title: Aluminum Door Frame Profile, Cut-To-Size, Quick door aluminum frame doors, Stainless steel look
Category: Aluminum Door Frame Profile, Cut-To-Size, Quick door aluminum frame doors
Item Details …
- Door width: min. 250 mm (9 13/16")
- Easy to assemble aluminum door that requires no special drilling for the hinges
- Easy fabrication, only a 45º miter cut is needed
- Ability to make individually sized frames
- Product type : Aluminum Door Frame Profile
- Length : 2,500.00 mm
- Length (inch) : Max. 8' 2"
- Area of application : Use with glass or panels with a thickness of 4 mm (5/32")
Additional Information …

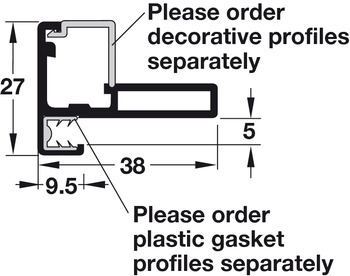

Glass size = 6 mm (1/4") less height and width of aluminum frame. Decorative profiles and plastic gasket on next page. Profile cannot be used for inset application.Data Sheet
Product Resources
Specifications
Brand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories

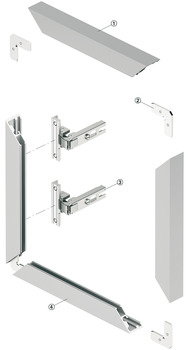

Optional Accessories:- Aluminum Frame Door Hinge, Häfele Metallamat A, half overlay/twin mounting, opening angle 110°
- Aluminum Frame Door Hinge, H-Series, 110° Opening Angle, Self Closing, Full Overlay
- Adapter Bracket, for Lid Stays
- Corner Connector, for Aluminum Door Frame Profiles, 4 Screws
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
