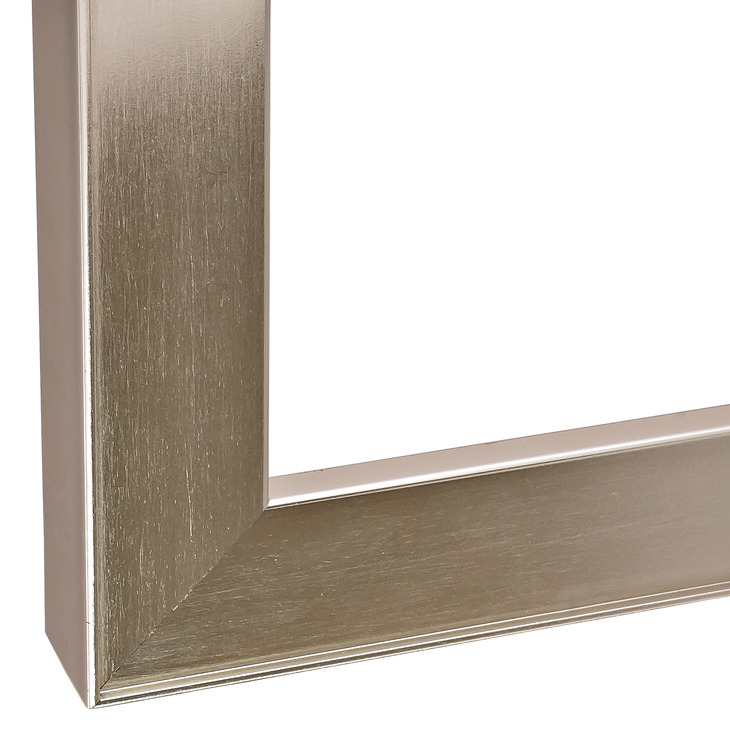

Hafele 563.26.022 Aluminum Frame Profile, 26 x 14 mm, with Reduced Frame, Glass Thickness 4 mm Stainless steel look

Product Information

• Description

  Manufacturer: Hafele
  Item: 563.26.022

  Product Title: Aluminum Frame Profile, 26 x 14 mm, with Reduced Frame, Glass Thickness 4 mm, Stainless steel look

  Category: Aluminum Frame Profile, 26 x 14 mm, with Reduced Frame, Glass Thickness 4 mm,

  Item Details …

  - Door width: min. 250 mm (9 13/16")

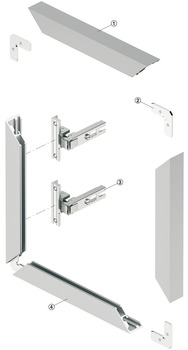

  - Easy to assemble aluminum door that requires no special drilling for the hinges

  - Easy fabrication, only a 45º miter cut is needed

  - Ability to make individually sized frames

  - Product type : Aluminum Frame Profile

  - Length : 2,489.00 mm

  - Length (inch) : Max. 8' 2"

  - For min. glass thickness (inches) : 1/8"

  - For max. glass thickness (inches) : 5/32"

  - Area of application : Use with glass or panels with a thickness of 4 mm (5/32")

  - Version : With reduced frame

  - Material : Aluminum

  - For glass thickness : 4 mm

  - For glass thickness (inches) : 1/8"?–?5/32"

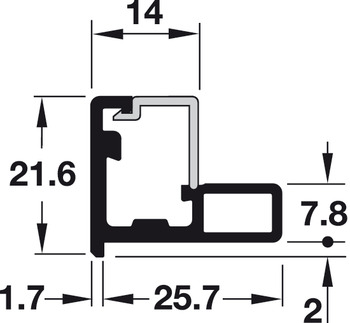

  - Dimensions : 26 x 14 mm

  - Order reference

  - Please order corner connectors, decorative profile and gasket separately.


  Additional Information …

  Glass size = 4 mm (5/32") less height and width of aluminum frame.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.188



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.166-9.167.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Plastic Gasket Profile, for Glass or Panel Inserts
  • Decorative Profile, for Aluminum Glass Frame Profiles 23/26/38 x 14 mm
  • Adapter Bracket, for Lid Stays
  • Handle, for Aluminum Glass Frame Profile
  • Aluminum Frame Door Hinge, H-Series, 110° Opening Angle, Self Closing, Full Overlay
