Product Information
Description

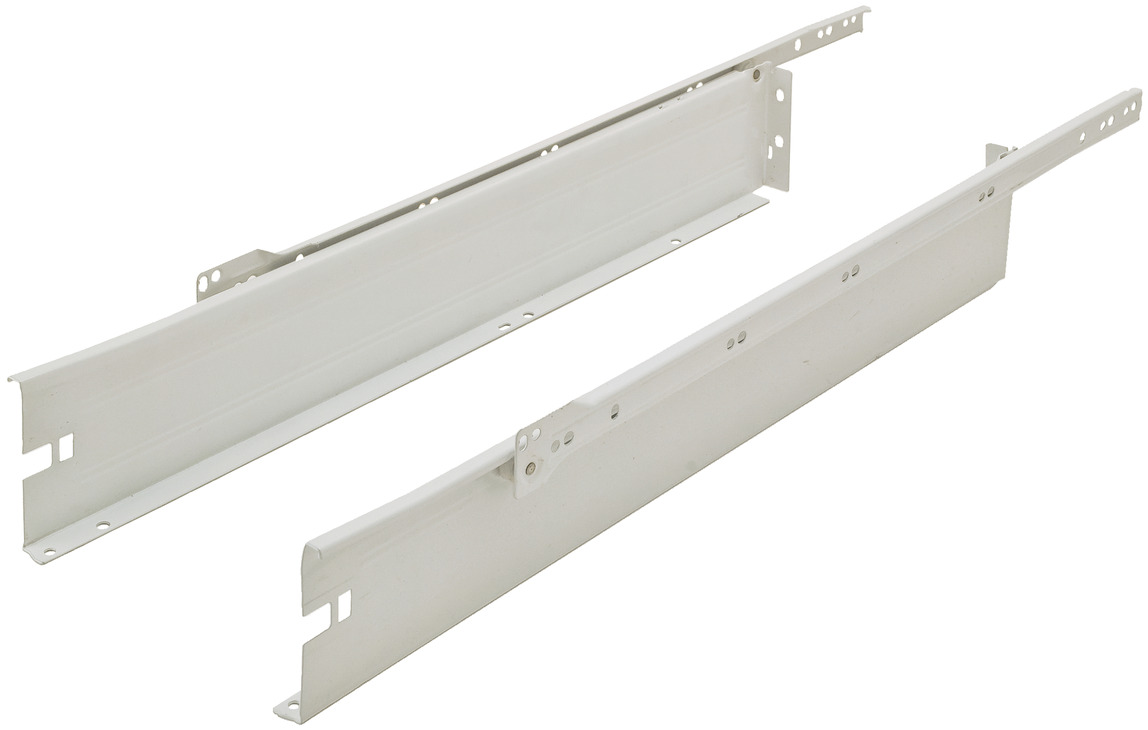

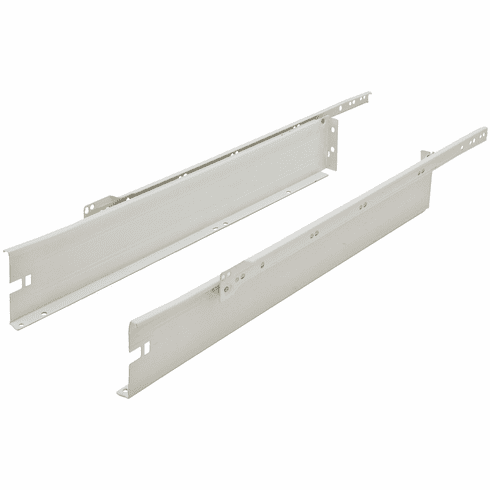

Hafele 558.54.735 Metal Box Drawer System, 4 1/2" Height, 3/4 Extension, Self-Closing
14" LengthLoad bearing capacity : (55 lbs) 25 kg Height : (4 1/2") 118 mm Material : Steel Finish : White epoxy-Coated Type of closing : Self-closing Supplied with : 1 Set (Set = L/R drawer member and L/R cabinet member)
Optional items:
Front Fixing Bracket, for Metal Box Drawer SystemSpecifications
Hafele 558.54.735, 558-54-735, 55854735, 558.54 Specifications/Hafele Catalog - Page# FC8.11:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Drawer Slides Catalog
Return to: All Hafele CatalogsDownload
Adobe PDF Reader
Cannot find your product? click: Help!. Our product experts will assist you.
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
