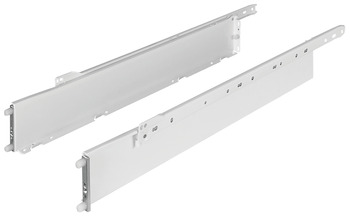

Hafele 558.27.755 Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8") (21 5/8") 550 mm length, model 11901-04

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.27.755

  Product Title: Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8"), (21 5/8") 550 mm length, model 11901-04

  Category: Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8"),

  Item Details …

  - Allow minimum of 3 mm (1/8ā€¯) for bottom clearance. If screws are used, increase clearance accordingly.

  - Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes.

  - Bottom panel length = slide length - panel thickness - 3 mm.

  - Bottom panel width = ICW - 31 (1 1/4")

  - Made in the USA

  - Quick assembly through dowelled and integrated front fixing brackets

  - Height (inch) : 20 1/4"

  - Color/finish : White

  - Comfort functions opening/closing : Self close

  - Comfort function type : Soft-close

  - For min. panel thickness : Back: 5/8"; Bottom: 1/2"

  - For max. panel thickness : Back: 3/4"; Bottom: 3/4"

  - Material : Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Supplied with:

  - 10 Sets

  - **Bulk packing is 300 sets
