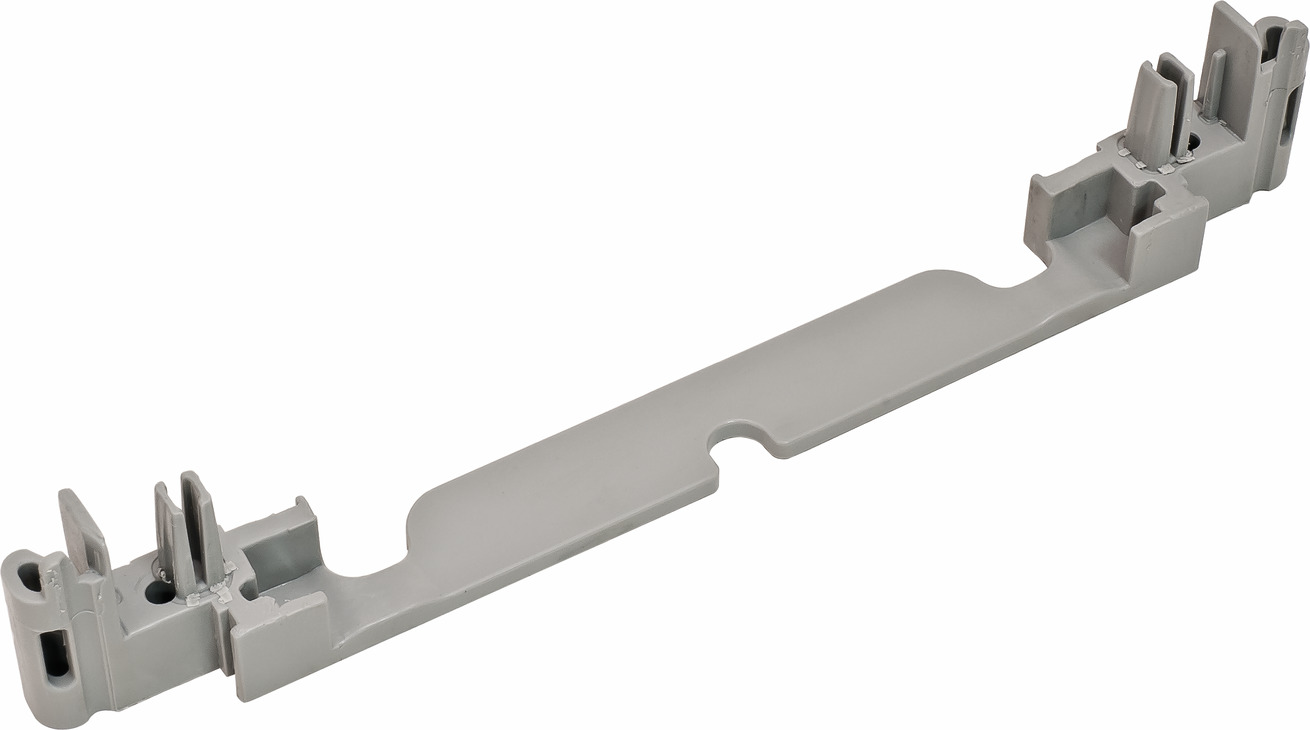

Hafele 553.00.320 Frame Connector Frame connector, model F121100282211

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.00.320

  Product Title: Frame Connector, for More than One Drawer, Grass Sensomatic, Frame connector, model F121100282211

  Category: Frame Connector, for More than One Drawer, Grass Sensomatic, Frame connector, model F121100282211

  Item Details �

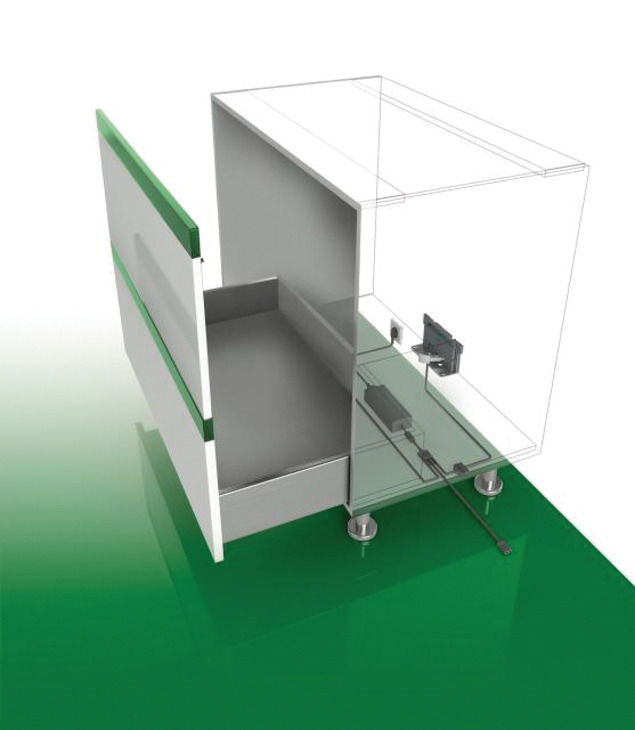

  - The electro mechanical opening system is triggered by a light touch anywhere on the surface of the front which causes drawers to glide evenly and smoothly

  - Available for use with Dynapro dynamic runners or Nova Pro drawer systems

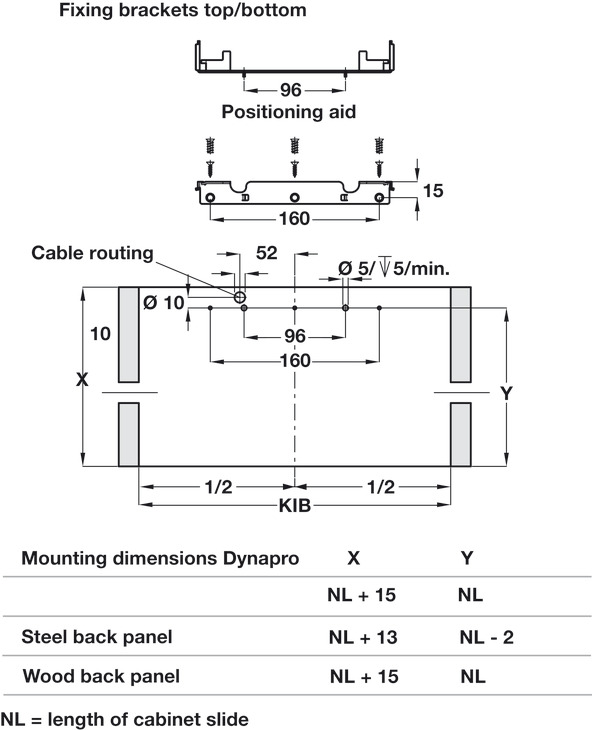

  - Please see catalogue for additional installation information

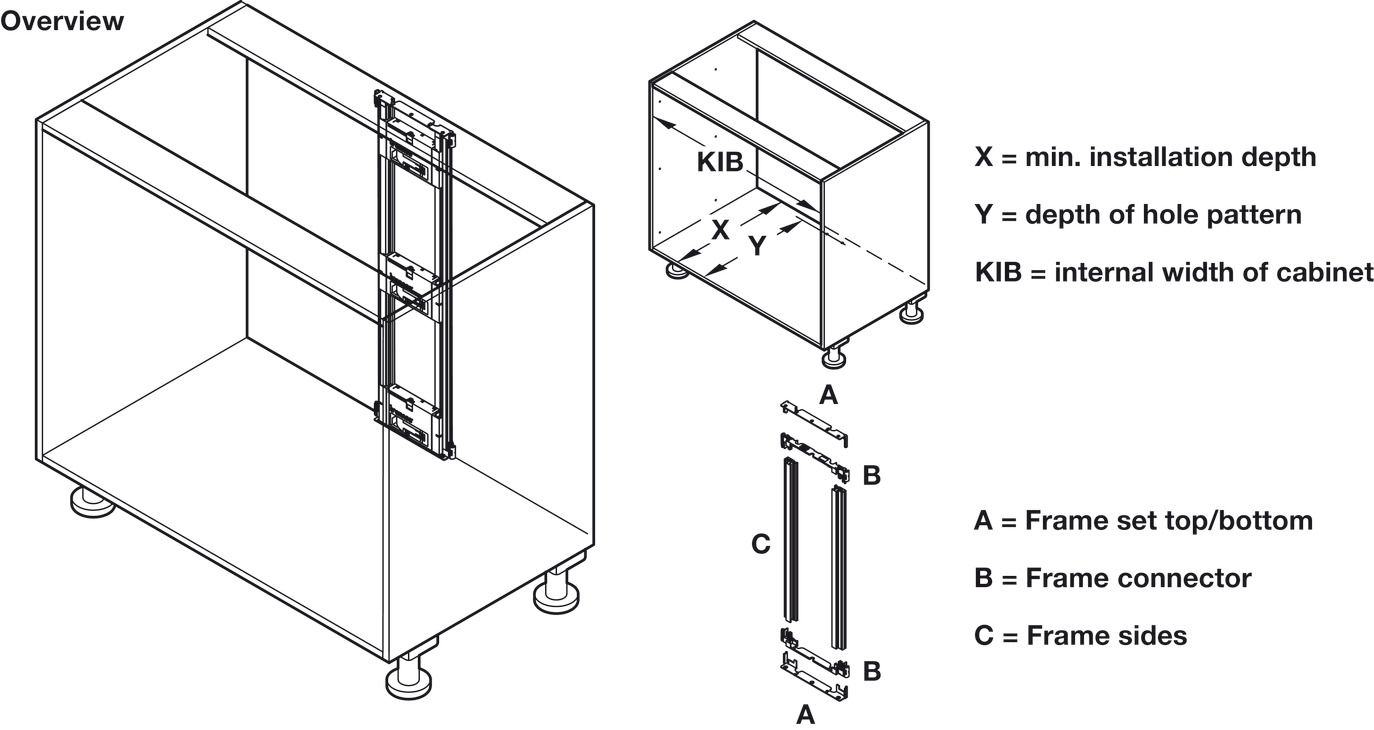

  - System parts:

  - 1. Opening unit, for eithe Dynapro or Nova Pro drawer systems, grey plastic

  - 2. Frame sides, aluminium 653 mm, including cable, to suit 720 mm high cabinet

  - 3. Frame set, consists of: 1x set of 6 fixing brackets

  - 4. Power supply, input 100-240V, 50-60 HZ, output 24V DC, max. 120W, black plastic

  - 5. Mains cable, 2000 mm lead length, black

  - 6. Connecting cable, 1600 mm length, black

  - 7. Door buffer, spring loaded, Diameter: 5 mm, with 3 mm front gap, grey plastic with spring mechanism

  - Connecting cable, allows up to three opening units to be opened simultaneously

  - Material : Steel
