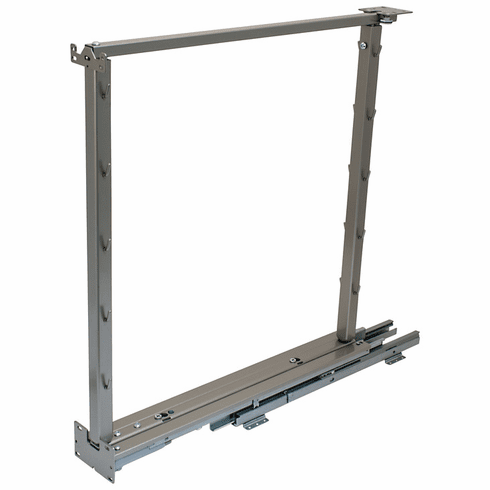

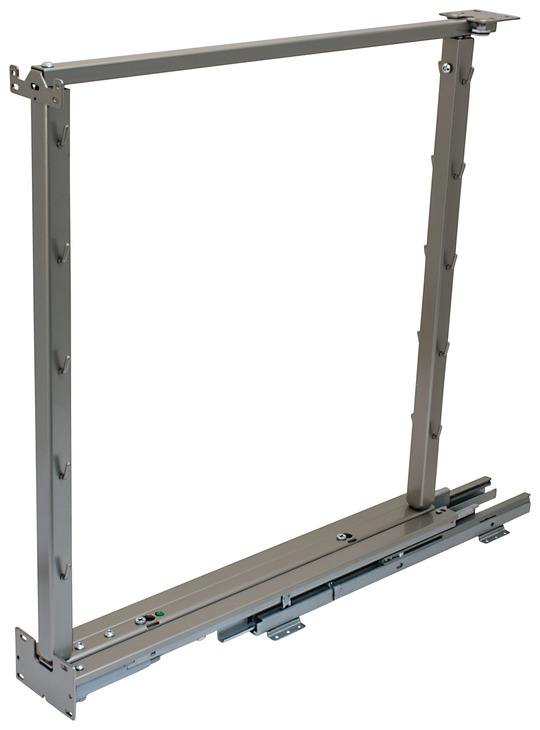

Hafele 546.62.826 Base Pull-Out II, for Overlay and Inset Doors, 60 lbs. max with Soft Close Champagne
Product Information
Description
Hafele 546.62.826 Base Pull-Out II, for Overlay and Inset Doors, 60 lbs. max with Soft Close
Champagne
Additional items required to complete installation:
Tray Set, for Base Pull-Out
Fineline„¢ Pantry Box
Fineline„¢ Pantry Bracket Set,Features : Soft & Silent Type of pull out : Full extension Application : For overlay and inset doors Mounting : Frame mounts top and bottom behind full door Adjustment : Baskets & frame are height adjustable Installation height : (26 3/8" - 32") 670 mm - 812 mm Width : (3 3/4") 95 mm Depth : (21 3/8") 543 mm Load bearing capacity : (60 lbs) 27.2 kg Material : Steel, powder-coated Supplied with : Slides
Front brackets
Optional items:
Base Pull-Out II, for Overlay and Inset Doors, 60 lbs. max with Soft Close
Wide Bottom Door Bracket, for Base Pull-Out II
Youboxx, for Base Pull-Out IICatalog Pages
