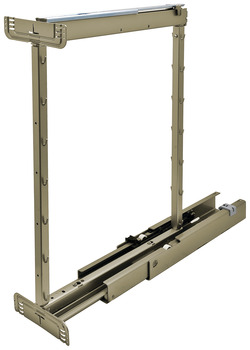

Hafele 546.62.813 Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity Champagne, installed height 74 7/8 - 90 1/2"

Product Information

• Description

  Manufacturer: Hafele
  Item: 546.62.813

  Product Title: Dispensa Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity, Champagne, installed height 74 7/8 - 90 1/2"

  Category: Dispensa Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity,

  Item Details …

  - Works with overlay and inset doors

  - For 12" (305 mm) to 24" (610 mm) cabinet widths

  - Integrated soft open and soft close

  - Synchronized runner provides a more stable and smooth operation

  - Easy installation

  - Internal installation height :

  - Load bearing capacity of pull out shelf : 120.00 kg

  - Width : 121.00 mm

  - Width (inch) : 4 3/4"

  - Depth : 546.00 mm

  - Depth (inch) : 21 1/2"

  - Load bearing capacity : 265 lbs

  - Material : Steel

  - Comfort functions opening/closing : Soft closing mechanism

  - Suitable for : Overlay and inset doors

  - Features : Recommended for 8 shelves

  - Installation reference : For 12” to 24” cabinet widths

  - Installation : for door front fixing

  - Order reference

  - Tray/basket sets must be ordered separately.

  - Supplied with:

  - Frame

  - Slides

  - Brackets
