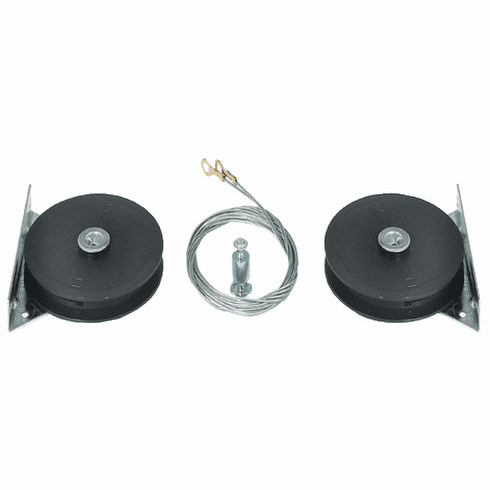

Hafele 442.09.903 Counterbalancing Mechanism, for Tambour Door Weight of max. 6 kg For roller shutter widths 210-1,000 mm, for roller shutter lengths up to 1,800 mm, cable length: 1,600 mm
Product Information
Description
Manufacturer: Hafele
Item: 442.09.903
Product Title: Counterbalancing Mechanism, for Tambour Door Weight of max. 6 kg, For roller shutter widths 210–1,000 mm, for roller shutter lengths up to 1,800 mm, cable length: 1,600 mm
Category: ,
Item Details …
- Area of application : Tambour doors running on the rear panel with vertical running direction
- For roller shutter width : 216 – 1,000 mm
- For roller shutter length : ≤1,800 mm
- Material : Plastic
- Color/finish : Fitting: Galvanized, drums: Black
- Installation reference : The mounting position depends on the size of the roller shutter.Please follow the installation instructions.The cables must be installed in the centre of the lower edge of the tambour door.
- Order reference
- Bends with other radii available from a minimum order quantity of 500 pieces

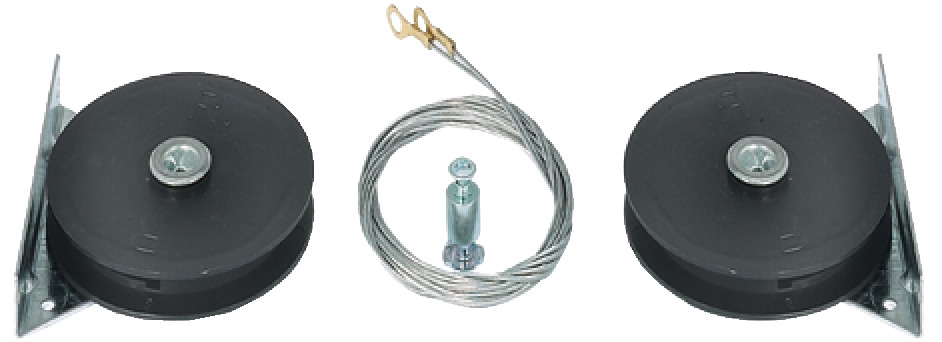

- Supplied with:
- 1 pair of rollers with spring
- 2 cables with fastening eyes
- 1 set of fixing material
- 1 set of installation instructionsData Sheet
Product Resources
Specifications
Hafele 442.09.903 Roller Shutter Counterbal.Mechan. (12X12X4 Cm) - 1 Set
