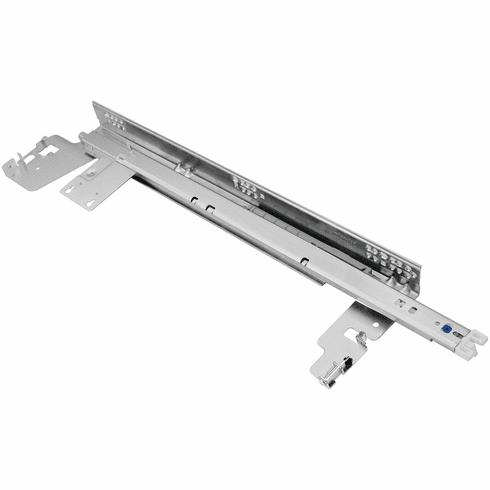

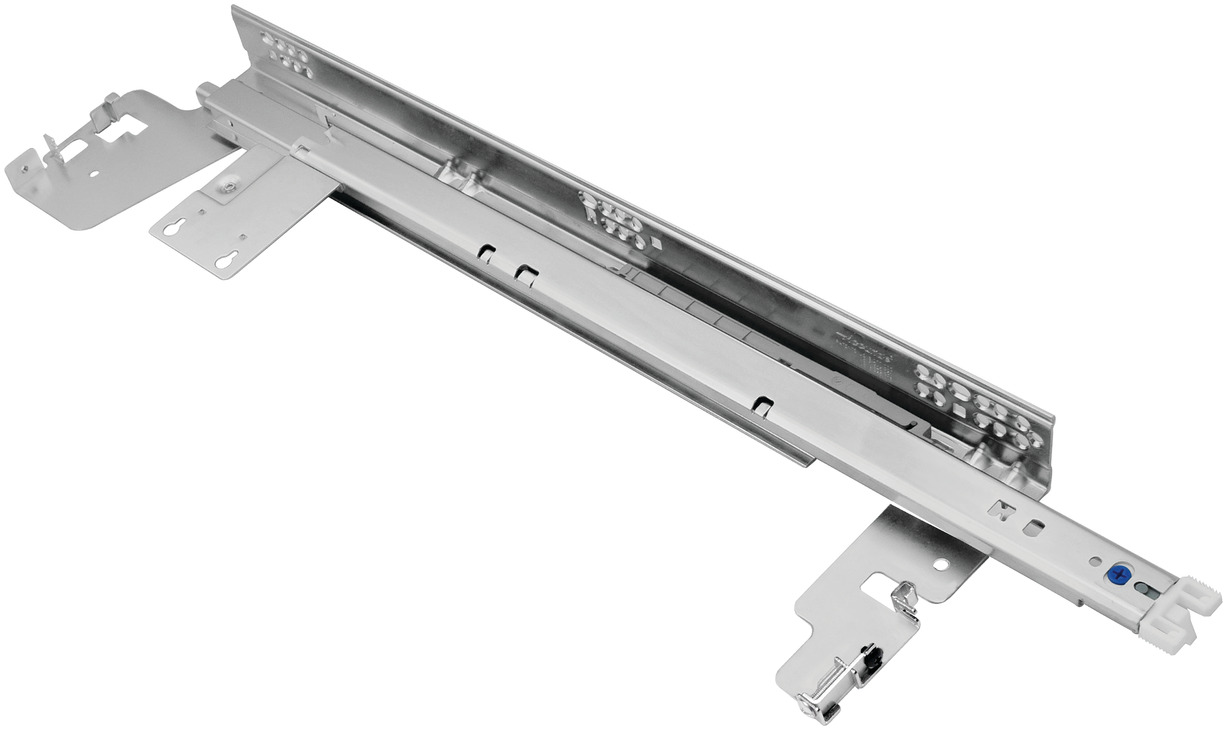

Hafele 433.29.055 Concealed Undermount Slide, Accuride Eclipse 3160EC 457 mm (18")

Product Information

• Description

  Hafele 433.29.055 Concealed Undermount Slide, Accuride Eclipse 3160EC
  457 mm (18")

  Additional items required to complete installation:
  Wide Drawer Stabilizer Kit


  Load bearing capacity : (100 lbs) 45 kg

  Material : Steel

  Finish : Bright electro zinc

  Note :

  Wide drawer stablizer kit is required





  Supplied with :

  1 pair slides

  Screws

  Disconnect levers

  Cable system

  Mounting instructions
