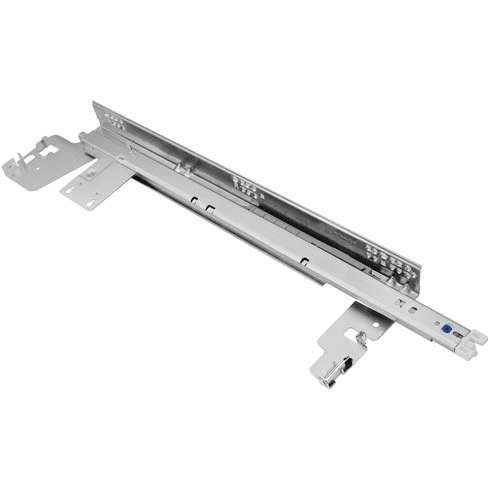

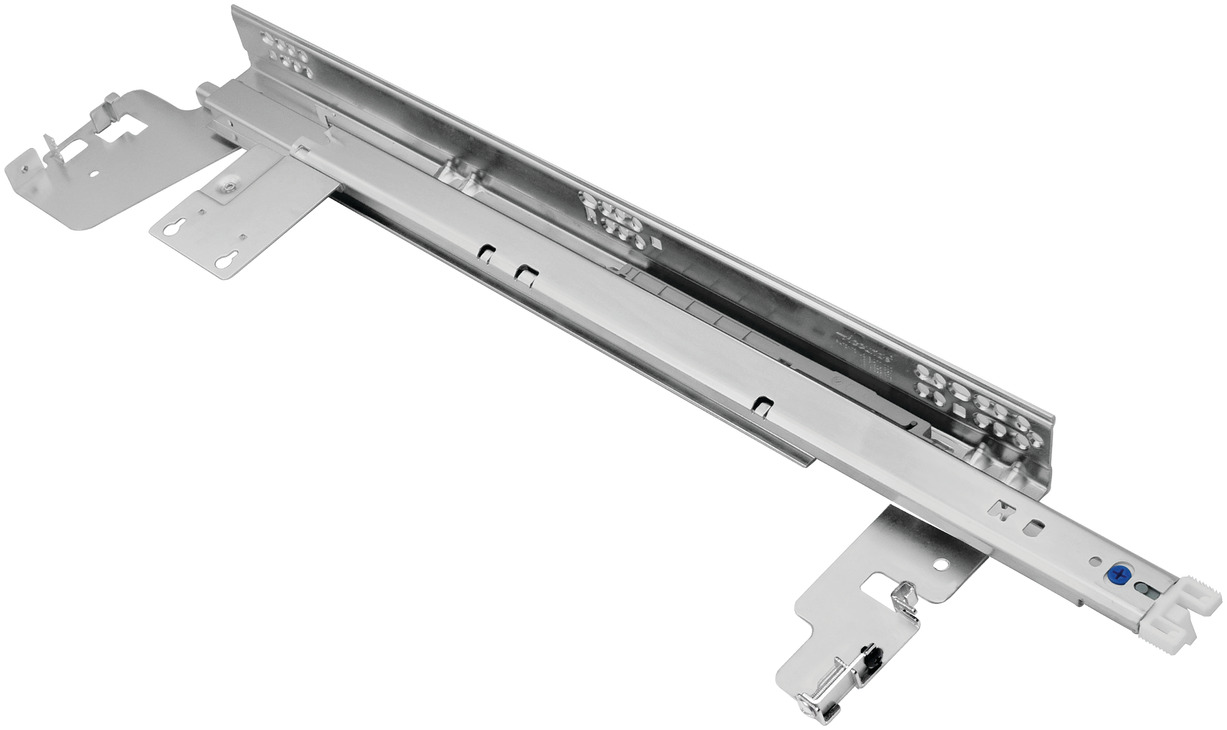

Hafele 433.29.054 Concealed Undermount Slide, Accuride Eclipse 3160EC 406 mm (16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.29.054

  Product Title: Concealed Undermount Slide, Accuride Eclipse 3160EC, 406 mm (16")

  Category: Concealed Undermount Slide, Accuride Eclipse 3160EC,

  Item Details …

  - Commercial grade

  - Easy close mechanism consistently brings drawers to a gentle close

  - Fluid damper resists slam without adding bounce back

  - Lower spacer clip reduces migration and side to side movement

  - Meets ADA requirements with 4.8 lbs. of pull force

  - 1/8� vertical, horizontal and depth adjustment

  - Frameless or face frame with back bracket

  - 3D adjustment in disconnect

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Material : Steel

  - Color/finish : Bright electro zinc

  - Order reference

  - For drawers up to 41� to 60� wide with included cable system and Wide Drawer stabilizer kit, order separately.

  - Supplied with:

  - 1 pair slides

  - Screws

  - Disconnect levers

  - Cable system

  - Mounting instructions


  Additional Information …

  Wide drawer stablizer kit is required
