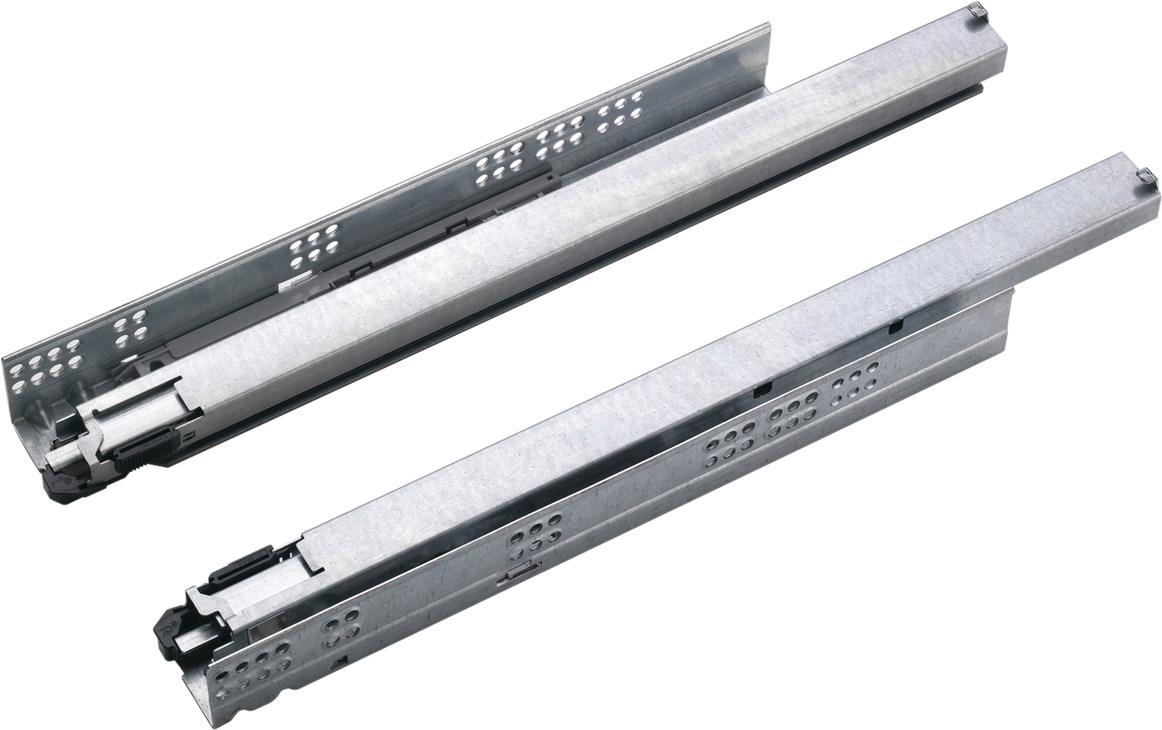

Hafele 433.20.448 Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs 18" length, model F130100730204

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.20.448

  Product Title: Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs, 18" length, model F130100730204

  Category: Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs,

  Item Details …

  - 3-D adjustable version adds tilt adjustment +4 mm (11/64�)

  - Slide-on mounting

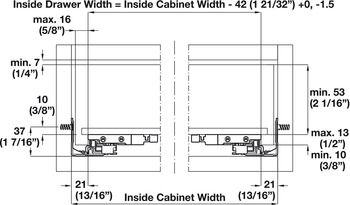

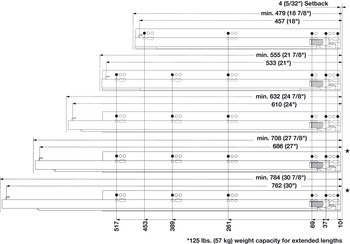

  - In drawings, X represents installation length

  - Integrated soft close liquid dampening provides sleek, smooth closing

  - Fully synchronized runner for the ultimate in smooth silent operation

  - Continuous self-locking of drawer when pushed onto the drawer

  - Slide-on mounting

  - Model series : Grass Dynapro 16 3D

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 60.00 kg

  - Load bearing capacity : 132 lbs

  - Adjustment facility : Height adjustment + 3.5 mmSide adjustment ± 1.5 mmTilt adjustment + 4 mm

  - Material : Steel

  - Color/finish : Zinc

  - Order reference

  - Front locking devices must be ordered separately


  Additional Information …

  Requires R/L front locking device and R/L rear adjustment adapter

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.64



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Drawer Drilling Template, for Grass Dynapro Slides
  • Narrow Front Locking Device, For Grass Dynapro Slides
  • Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  • Rear Mounting Bracket, for 9" Grass Dynapro Slides
  • Depth Adjuster, for Grass Dynapro Slides
