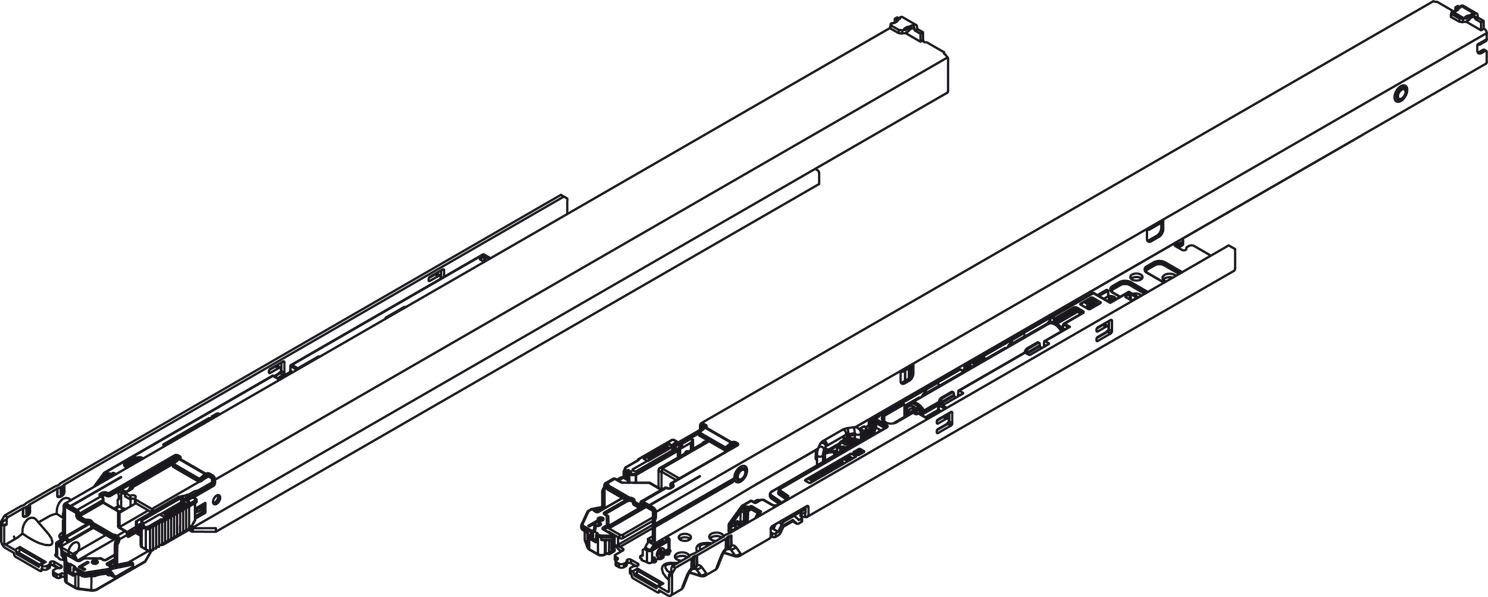

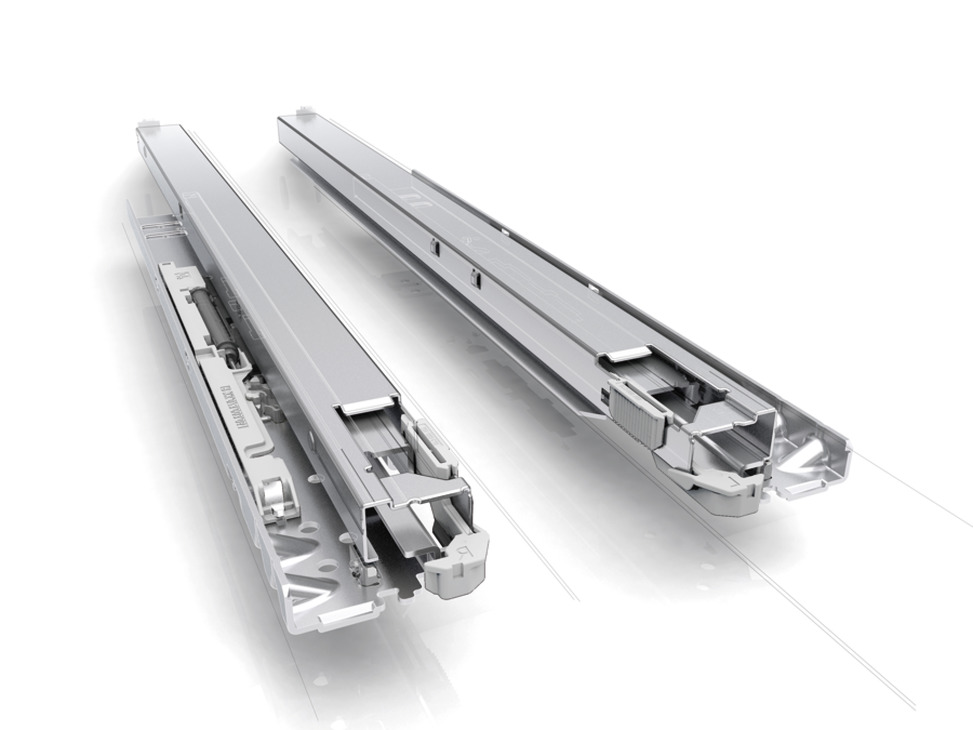

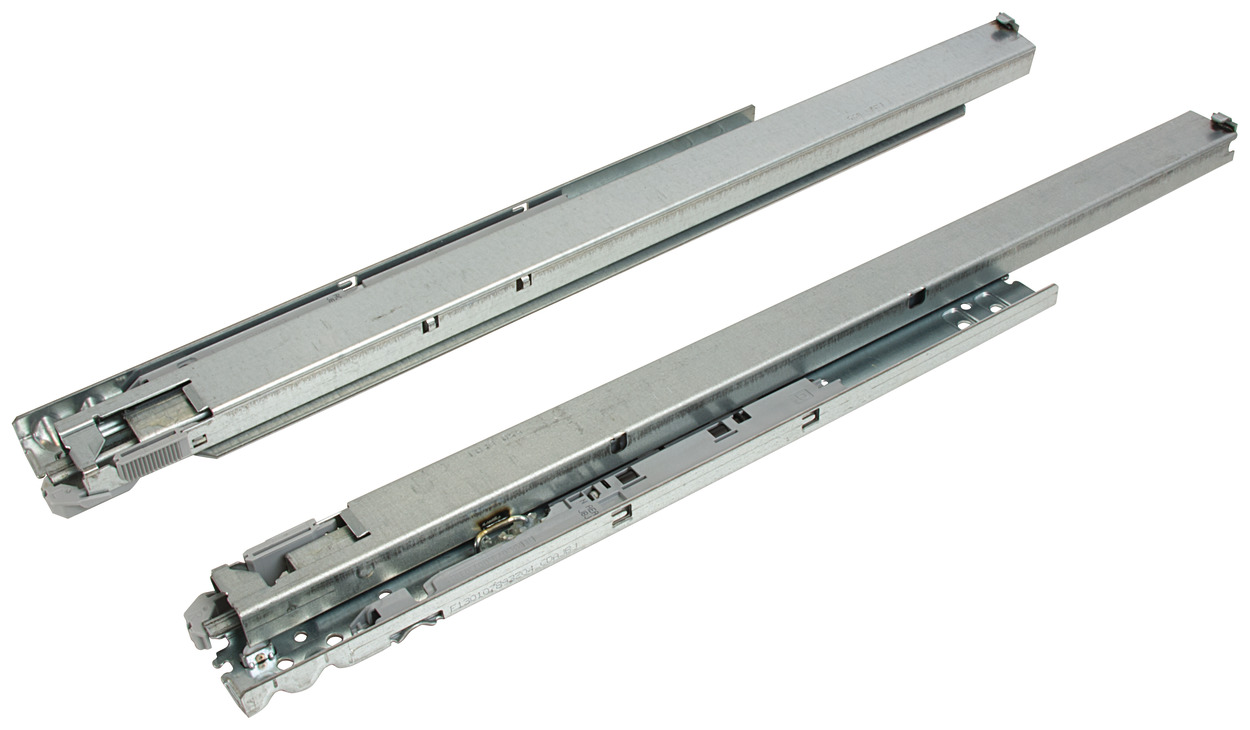

Hafele 433.19.626 Grass Dynapro BPM, steel, full extension, soft close, 550mm, 22 inch

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.19.626

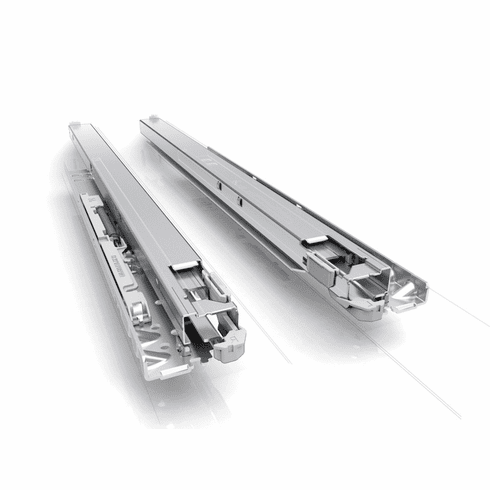

  Product Title: Concealed Drawer Slide, for Base Panel Mounting, Full Extension, Dynapro 40 kg, With integrated liquid Soft-close , 22" length

  Category: Concealed Drawer Slide, for Base Panel Mounting, Full Extension, Dynapro 40 kg, With integrated liquid Soft-close®

  Item Details …

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close

  - Load bearing capacity : 40.00 kg

  - Load bearing capacity : 88 lbs

  - Material : Steel

  - Color/finish : Zinc plated

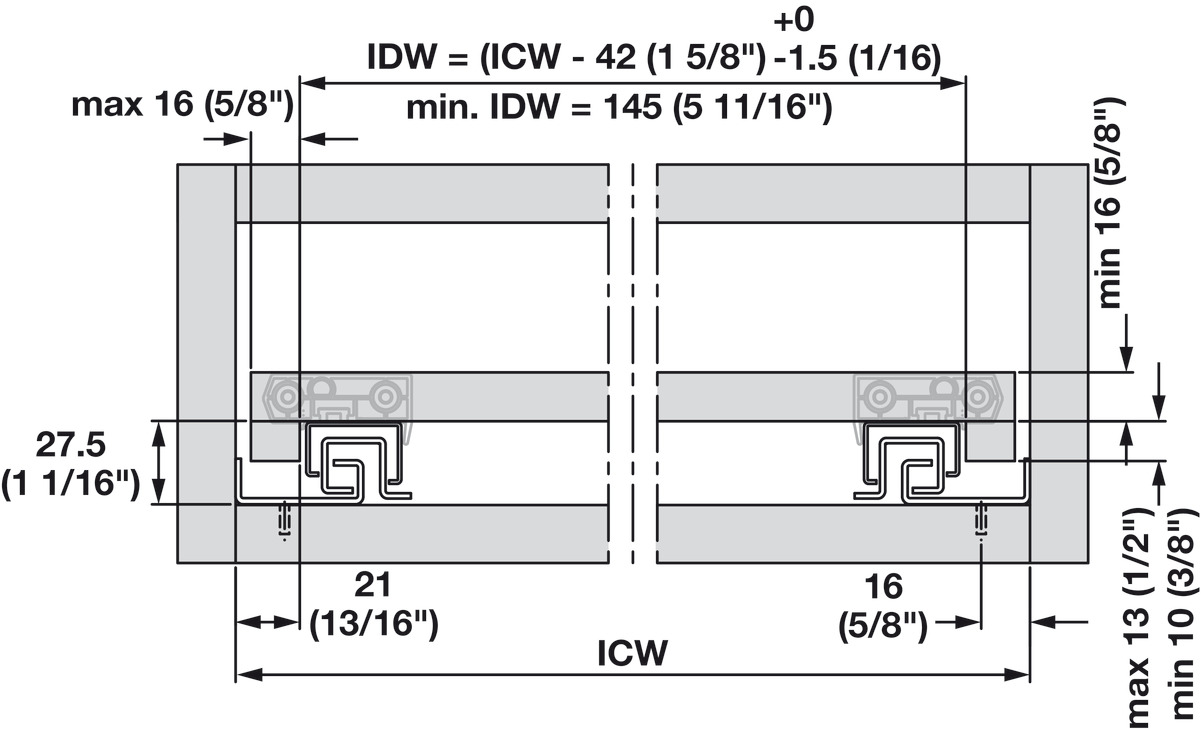

  - Installation : 32 mm drilling pattern
