Hafele 430.90.704 Drawer Front Connector, plastic, natural, M4

Product Information

• Description

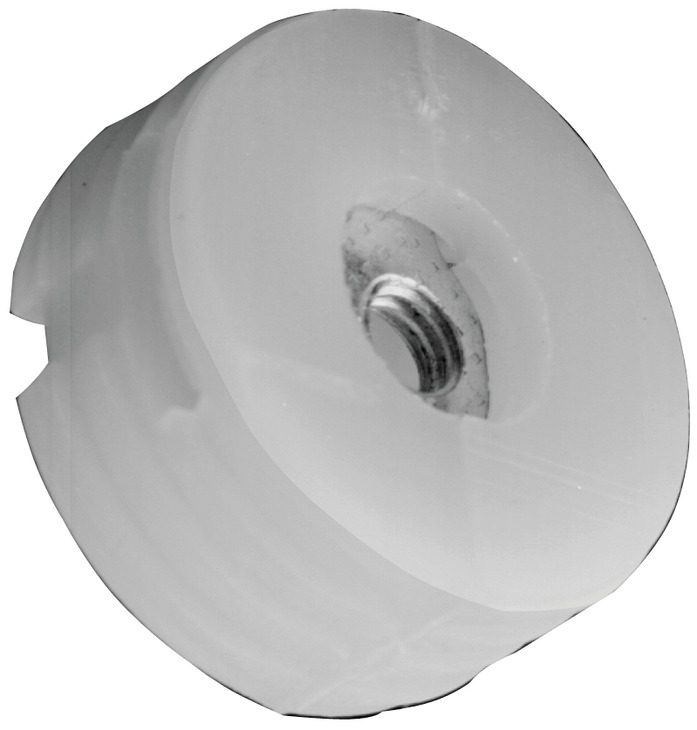

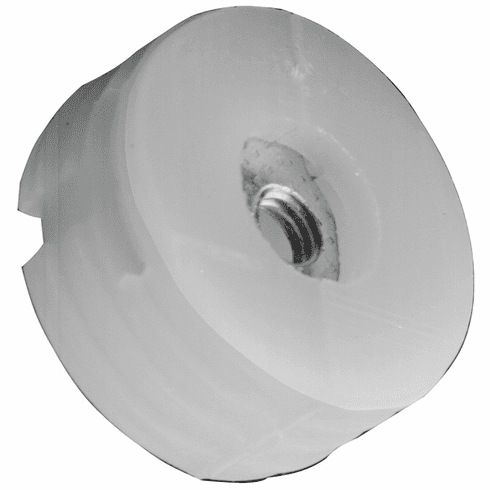

  Hafele 430.90.704 Drawer Front Connector

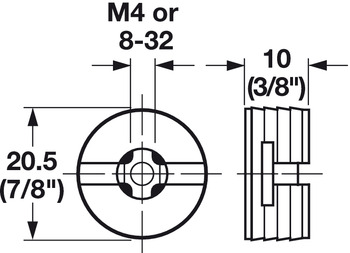

  M4



  Application : Pressed in a 20 mm (3/16") hole in drawer front

  Adjustment : Allows for ± 2 mm (1/16") horizontal or vertical adjustment

  Material : Plastic

  Color : Natural





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.88-8.88.pdf

  Hafele 430.90.704, 430-90-704, 43090704, 430.90


  Specifications/Hafele Catalog - Page# FC8.81: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
