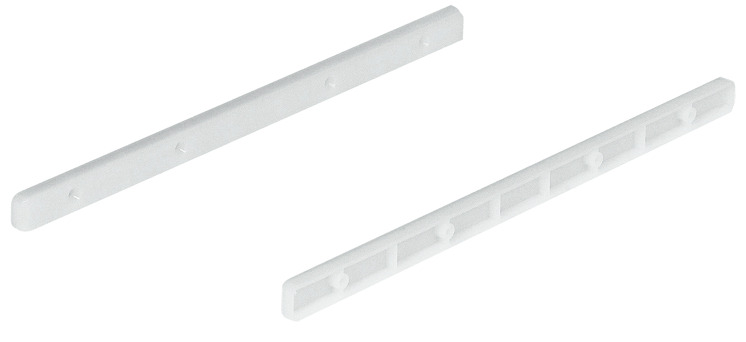

Hafele 430.15.701 Guide Rail, 3/4 Extension, Side Mounted Installation length: 285 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 430.15.701

  Product Title: Guide Rail, 3/4 Extension, Side Mounted, Installation length: 285 mm

  Category: Guide Rail, 3/4 Extension, Side Mounted, Installation length: 285 mm

  Item Details …

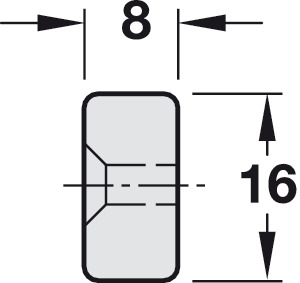

  - Installation length : 285.00 mm

  - Width : 8.00 mm

  - Color/finish : White

  - Length (inch) : 11 1/4"

  - Area of application : Suitable for drawers with 17 mm groove

  - Material : Plastic

  - Installation : Screw-mounted

  - Height : 16.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.126



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.91-8.91.pdf

  Hafele 430.15.701, 430-15-701, 43015701, 430.15


  Specifications/Hafele Catalog - Page# FC8.87: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Drawer Stop, Press-Fit
