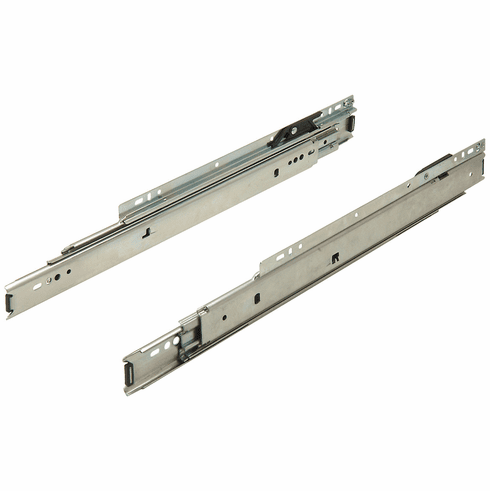

Ball Bearing Slide, Accuride C7434, overtravel, full extension, steel, zinc-plated, 100 lbs, 20": Hafele part# 422.93.950
Product Information
Description
Hafele 422.93.950 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity
Shop pack, zinc-plated, 20" installed length, 21" extension length, 16 7/8" rail lengthModel series : 7434 Mounting : Side mounted Type of pull out : Full extension with 1" overtravel and hold-in detent Features : Progressive
Low profile - 60 mm (2 3/8")Load capacity : Per apir: (100 lbs) 45 kg Application : Can be mounted in either traditional or 32 mm cabinets Material : Steel Note : X pack: 5 pairs
Optional items:
with Special Countersunk Head
Hafele, Varianta, countersunk head, PZ2, steel, for screwing into wood
with Special Cylinder Head, #2 Pozi Drive, Shop PackSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page:Hafele 422.93.950, 422-93-950, 42293950, 422.93 Specifications/Hafele Catalog - Page# FC8.48:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Drawer Slides Catalog
Return to: All Hafele CatalogsDownload
