Hafele 422.93.948 Ball Bearing Slide, Accuride C7434, overtravel, full extension, steel, zinc-plated, 100 lbs, 18"

Product Information

• Description

  Hafele 422.93.948 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity


  Note: This product can only be purchased in minimum quantity of 10



  Model series : 7434

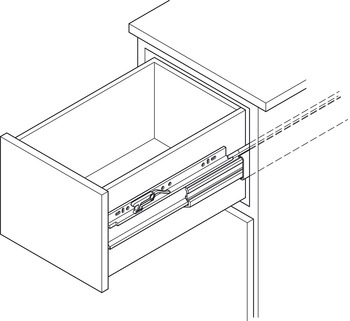

  Mounting : Side mounted

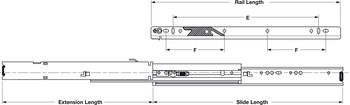

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Progressive

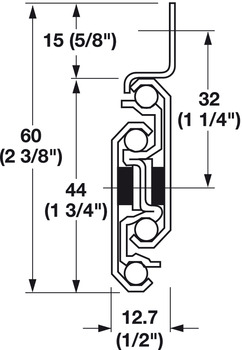

  Low profile - 60 mm (2 3/8")

  Load capacity : Per apir: (100 lbs) 45 kg

  Application : Can be mounted in either traditional or 32 mm cabinets

  Material : Steel

  Note :

  X pack: 5 pairs





  Optional items:
  with Special Countersunk Head
  Hafele, Varianta, countersunk head, PZ2, steel, for screwing into wood
  with Special Cylinder Head, #2 Pozi Drive, Shop Pack
