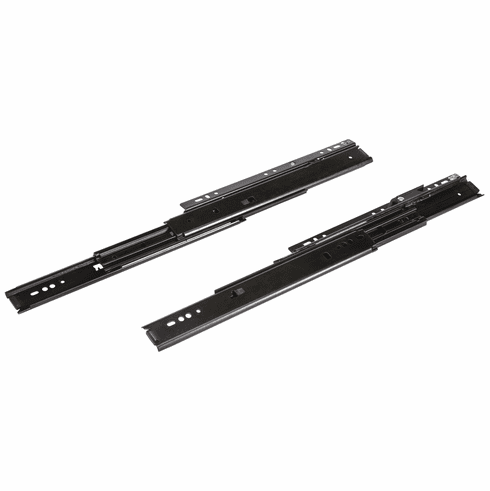

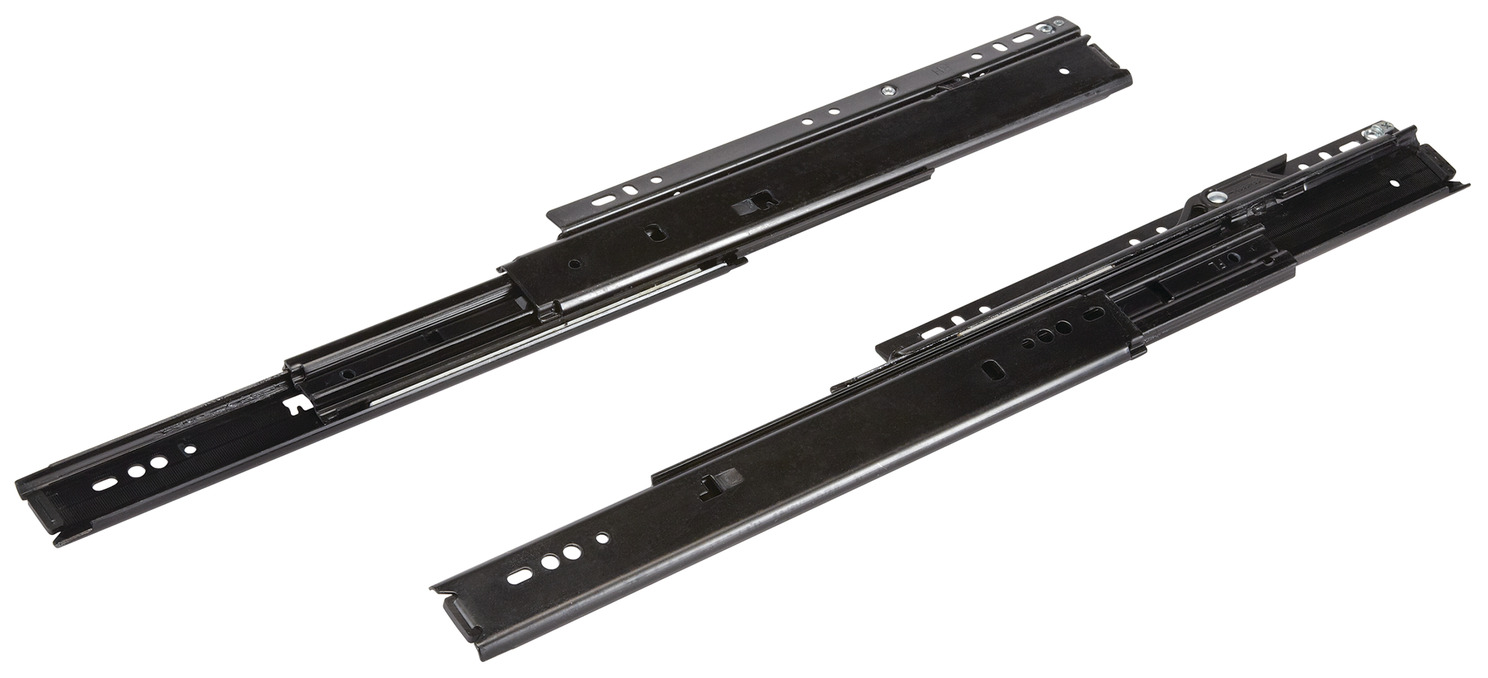

Hafele 422.93.345 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity Shop pack, black, 18" installed length, 19" extension length, 13 1/16" rail length

Product Information

• Description

  Hafele 422.93.345 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity
  Shop pack, black, 18" installed length, 19" extension length, 13 1/16" rail length



  Model series : 7434

  Mounting : Side mounted

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Progressive
  Low profile - 60 mm (2 3/8")

  Load capacity : Per apir: (100 lbs) 45 kg

  Application : Can be mounted in either traditional or 32 mm cabinets

  Material : Steel

  Note :

  X pack: 5 pairs





  Optional items:
  with Special Countersunk Head
  Hafele, Varianta, countersunk head, PZ2, steel, for screwing into wood
  with Special Cylinder Head, #2 Pozi Drive, Shop Pack


• Specifications

  Hafele 422.93.345, 422-93-345, 42293345, 422.93
