Hafele 422.91.971 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity Zinc, 28"

Product Information

• Description

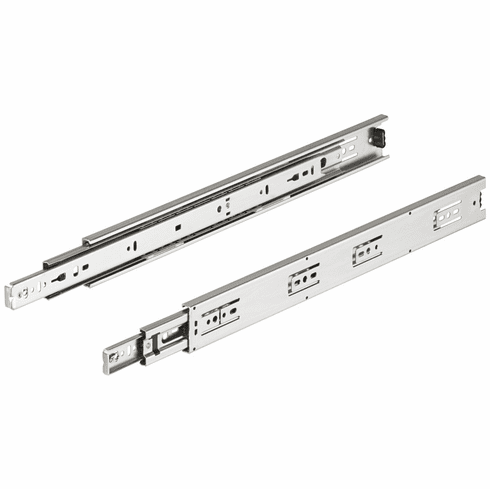

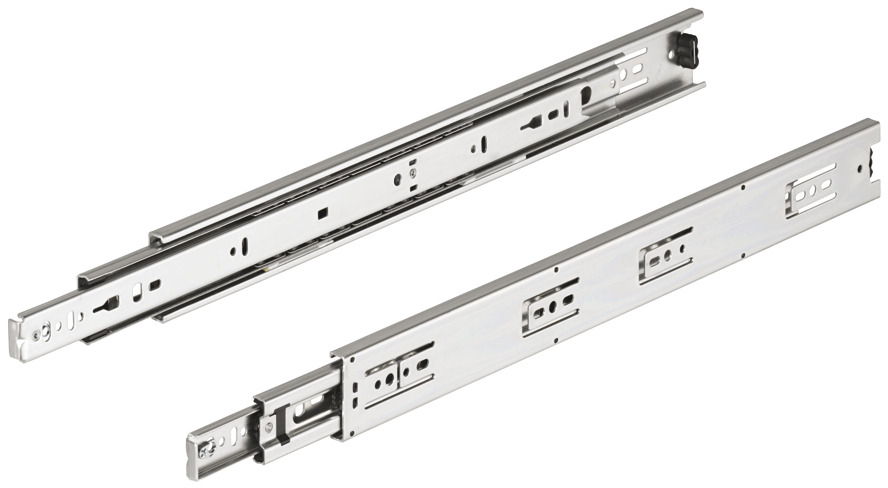

  Hafele 422.91.971 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity
  Zinc, 28"

  Accuride 3832 DO With hold-in device in closed position and hold-out device in extended position

  Model series : 3832 DO

  Mounting : Side mounted

  Type of pull out : Full extension

  Load bearing capacity : (100 lbs.) 45 kg

  Application : For drawers up to 406mm (16") wide

  Material : Steel

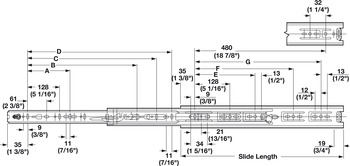

  A : 224 mm

  B : 416 mm

  C : 554 mm

  D : 642 mm

  E : 224 mm

  G : 554





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.91.971, 422-91-971, 42291971, 422.91


  Specifications/Hafele Catalog - Page# FC8.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
