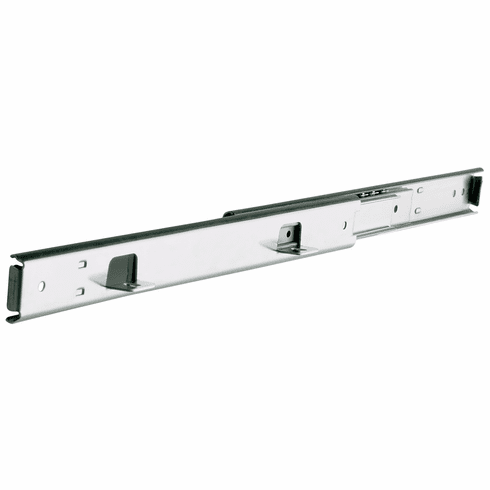

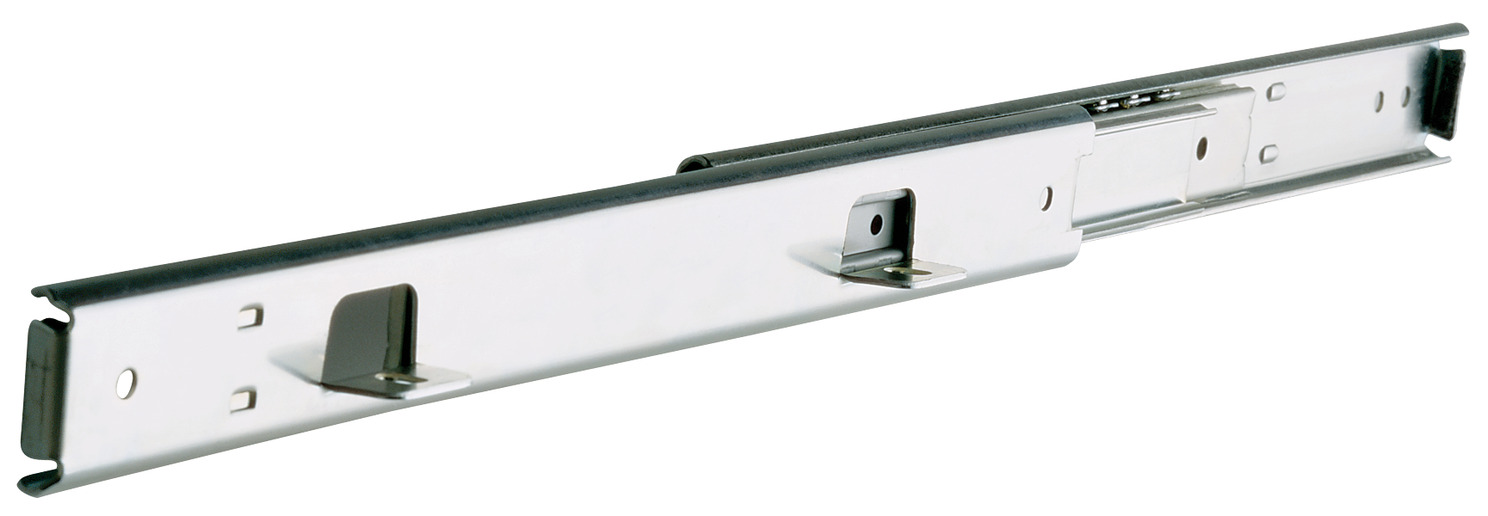

Hafele 422.69.950 Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity 20"

Product Information

• Description

  Hafele 422.69.950 Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity
  20"



  Model series : 322

  Mounting : Side mounted

  Load bearing capacity : Per pair: (100 lbs.) 45 kg

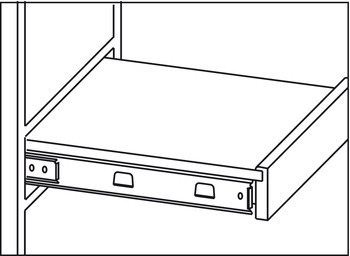

  Application : For use in kitchen appliance drawers, pan shelves, and entertainment center shelves
  For drawers up to 406 mm (16") wide

  Type of pull out : Shelf slide with 7/8" overtravel

  Features : Medium duty slide
  Non-disconnect

  Material : Steel

  Finish : Zinc

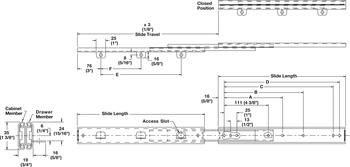

  A : 238 mm

  B : 353 mm

  C : 464 mm

  D : 476 mm



  Supplied with :

  Mounting screws
