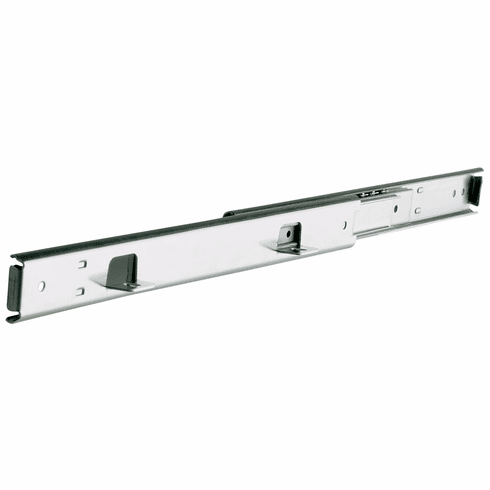

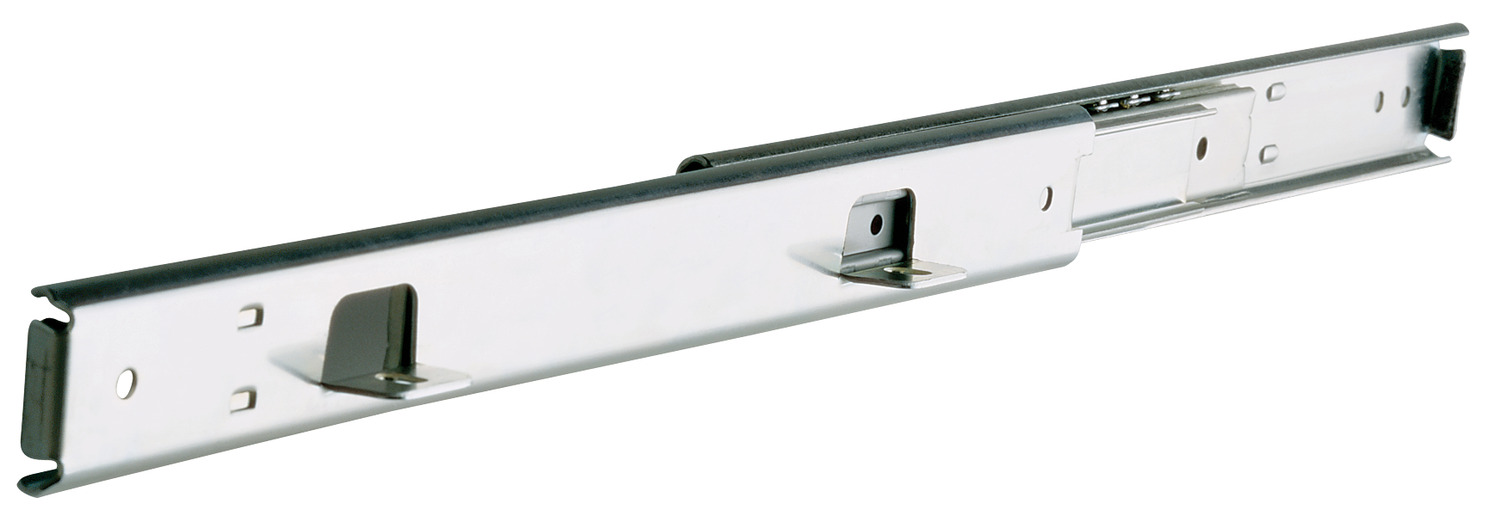

Hafele 422.69.945 Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity 18"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.69.945

  Product Title: Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity, 18"

  Category: Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

  - Version : Medium duty slideNon-disconnect

  - Color/finish : Zinc

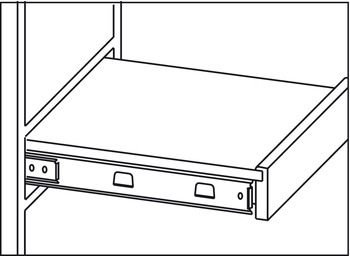

  - Area of application : For use in kitchen appliance drawers, pan shelves, and entertainment center shelvesFor drawers up to 406 mm (16") wide

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 301.00 mm

  - Installation : Side mounted

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

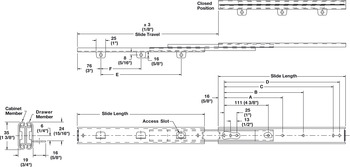

  CAD data

  Accuride 322 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.111



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.74-8.74.pdf

  Hafele 422.69.945, 422-69-945, 42269945, 422.69


  Specifications/Hafele Catalog - Page# FC8.58: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
