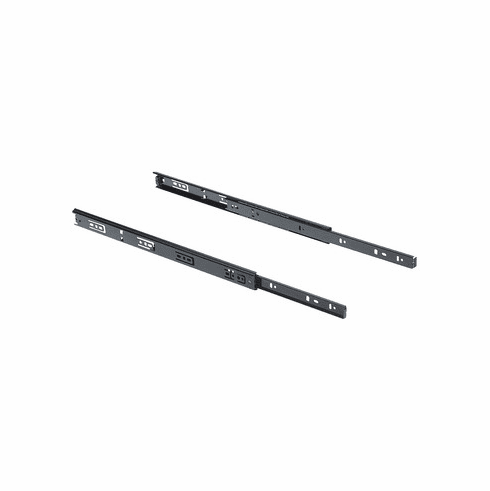

Hafele 422.32.946 Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity Bulk pack, 18" length

Product Information

• Description

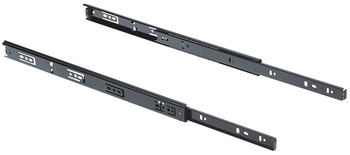

  Hafele 422.32.946 Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity
  Bulk pack, 18" length



  Model series : 2132

  Load bearing capacity : (75 lbs) 34 kg

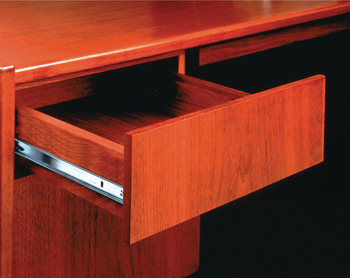

  Application : Drawers up to 16" wide, For commercial and residential furniture

  Type of pull out : 3/4 extension with hold-in detent

  Version : Features low profile for shallow drawers (1 3/8"), Easy lever disconnect

  Mounting : Side mounted

  Material : Steel

  Finish : Zinc



  Optional items:
  Optional Face Frame Bracket, for Accuride 2132 Side Mounted Slide

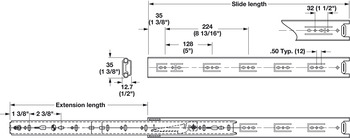

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.48-8.48.pdf

  Hafele 422.32.946, 422-32-946, 42232946, 422.32


  Specifications/Hafele Catalog - Page# FC8.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
