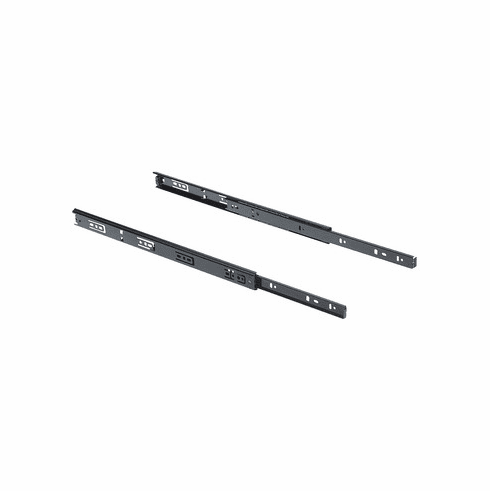

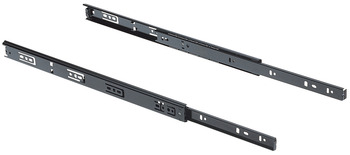

Hafele 422.32.945 Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity Shop pack, 18" length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.32.945

  Product Title: Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity, Shop pack, 18" length

  Category: Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 34.00 kg

  - Load bearing capacity : 75 lbs

  - Mounting : Side mounted

  - Version : Features low profile for shallow drawers (1 3/8"), Easy lever disconnect

  - Color/finish : Zinc

  - Type of pull out : Full extension

  - Area of application : Drawers up to 16" wide, For commercial and residential furniture

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Supplied with:

  - Shop Pack includes:

  - 1 pair slides

  - Mounting instructions

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 2132 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.85



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.48-8.48.pdf

  Hafele 422.32.945, 422-32-945, 42232945, 422.32


  Specifications/Hafele Catalog - Page# FC8.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
