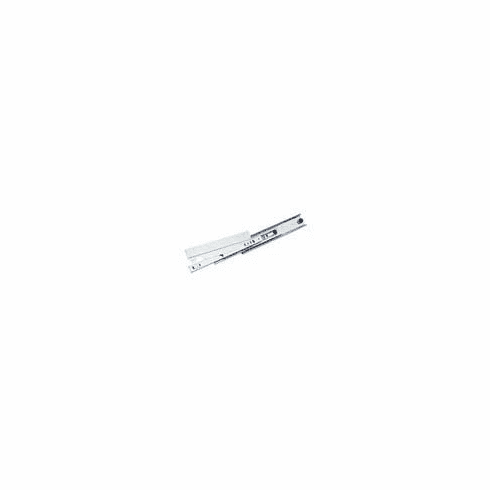

Hafele 422.07.554 Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity 22"

Product Information

• Description

  Hafele 422.07.554 Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity
  22"



  Model series : 3640-A

  Installation : Side/bottom mounted

  Type of pull out : Full extension with 1" overtravel and hold-in detent

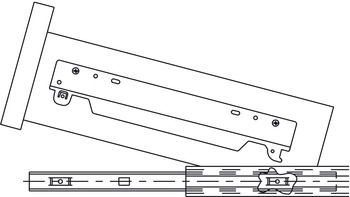

  Features : Telescopic with adapter rail mount disconnect
  Oversized ball bearings for heavy loads
  Features unhanded sides

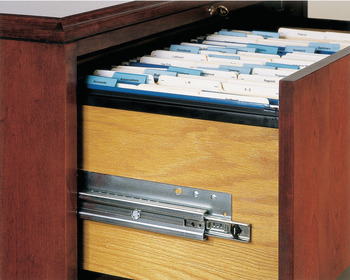

  Application : For large store fixtures, library, and institutional furniture applications

  Drawer width : Max: (42") 1067 mm

  Load bearing capacity : Side mounted: (200 lbs.) 90 kg/pair
  Bottom mounted: (75 lbs.) 34 kg/pair

  Material : Steel

  Finish : Zinc

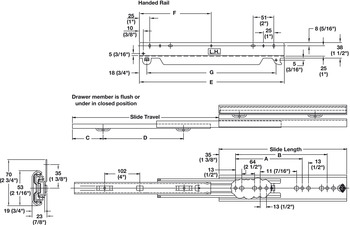

  A : 320 mm

  B : 416 mm

  C : 51 mm

  D : 318 mm

  E : 355 mm

  F : 178 mm

  G : 318 mm



  Supplied with :

  Mounting screws
