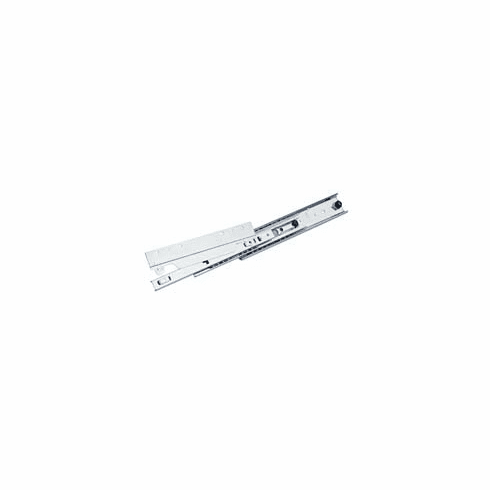

Hafele 422.07.509 Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity 20"

Product Information

• Description

  Hafele 422.07.509 Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity
  20"



  Model series : 3640-A

  Installation : Side/bottom mounted

  Type of pull out : Full extension with 1" overtravel and hold-in detent

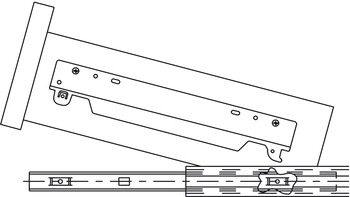

  Features : Telescopic with adapter rail mount disconnect
  Oversized ball bearings for heavy loads
  Features unhanded sides

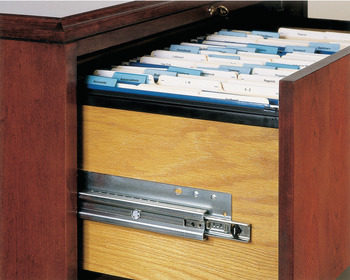

  Application : For large store fixtures, library, and institutional furniture applications

  Drawer width : Max: (42") 1067 mm

  Load bearing capacity : Side mounted: (200 lbs.) 90 kg/pair
  Bottom mounted: (75 lbs.) 34 kg/pair

  Material : Steel

  Finish : Zinc

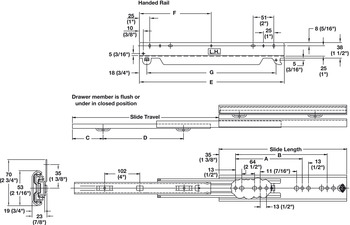

  A : 224 mm

  B : 416 mm

  C : 38 mm

  D : 267 mm

  E : 305 mm

  G : 267 mm



  Supplied with :

  Mounting screws





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.66-8.66.pdf

  Hafele 422.07.509, 422-07-509, 42207509, 422.07
