Hafele 422.05.126 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity P Pack; 22"; Model C3634-C22ECP
Product Information
Description

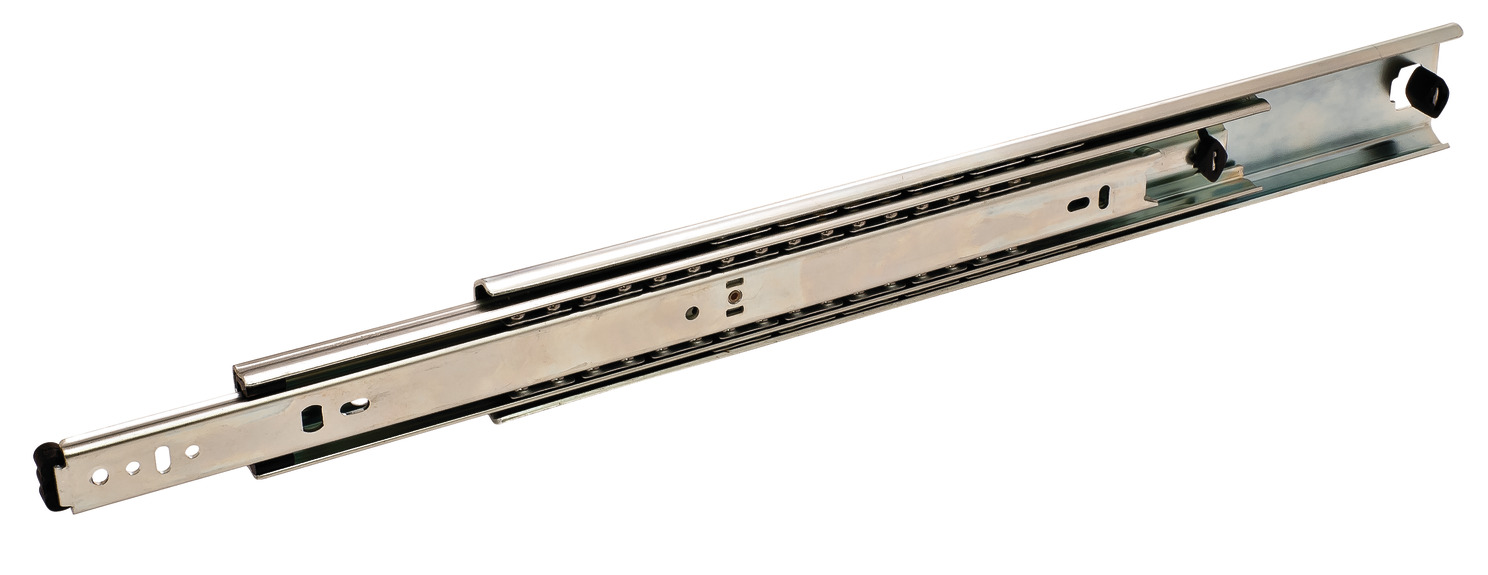

Hafele 422.05.126 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity

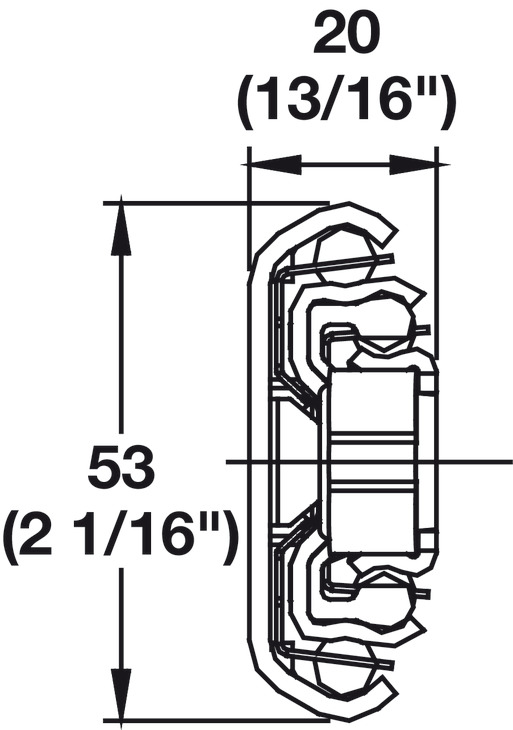

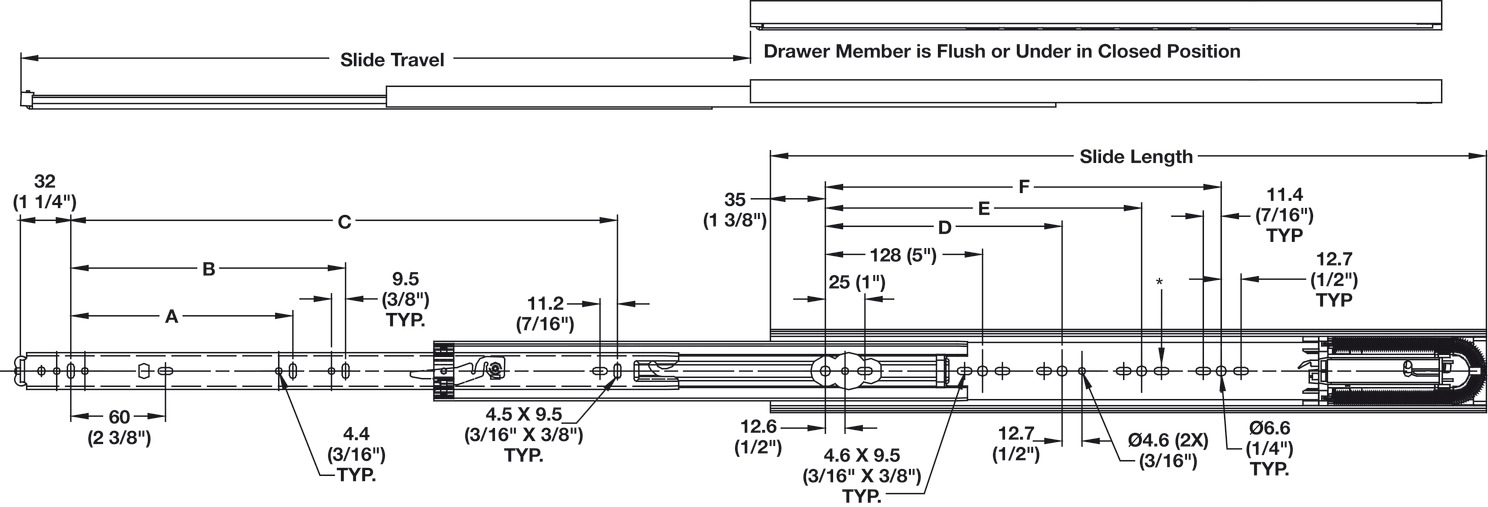

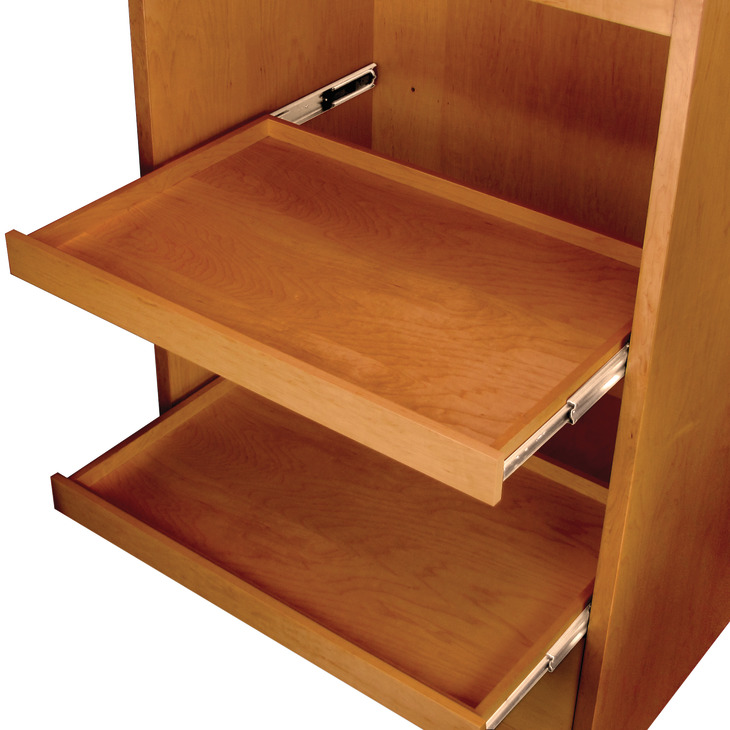

P Pack; 22"; Model C3634-C22ECPModel series : 3634EC Mounting : Side or flat mount Load bearing capacity : Per pair: (150 lb) 68 kg Suitable for : Wider drawers and trays used for storage in retail fixtures, restaurants, medical facilities and business offices as well as residential kitchens, garages and more Height : (2.09") 53.1 mm Width : (.78") 19.8 mm Travel : Over travel: (1") 25.4 mm Material : Steel Finish : Zinc-plated A : 142 mm C : 451 mm D : 224 mm Order reference : - D Pack - Polybag includes one pair of slides with moutning screws.
- P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
Specifications
