Hafele 422.05.125 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity P Pack; 20"; Model C3634-C20ECP

Product Information

• Description

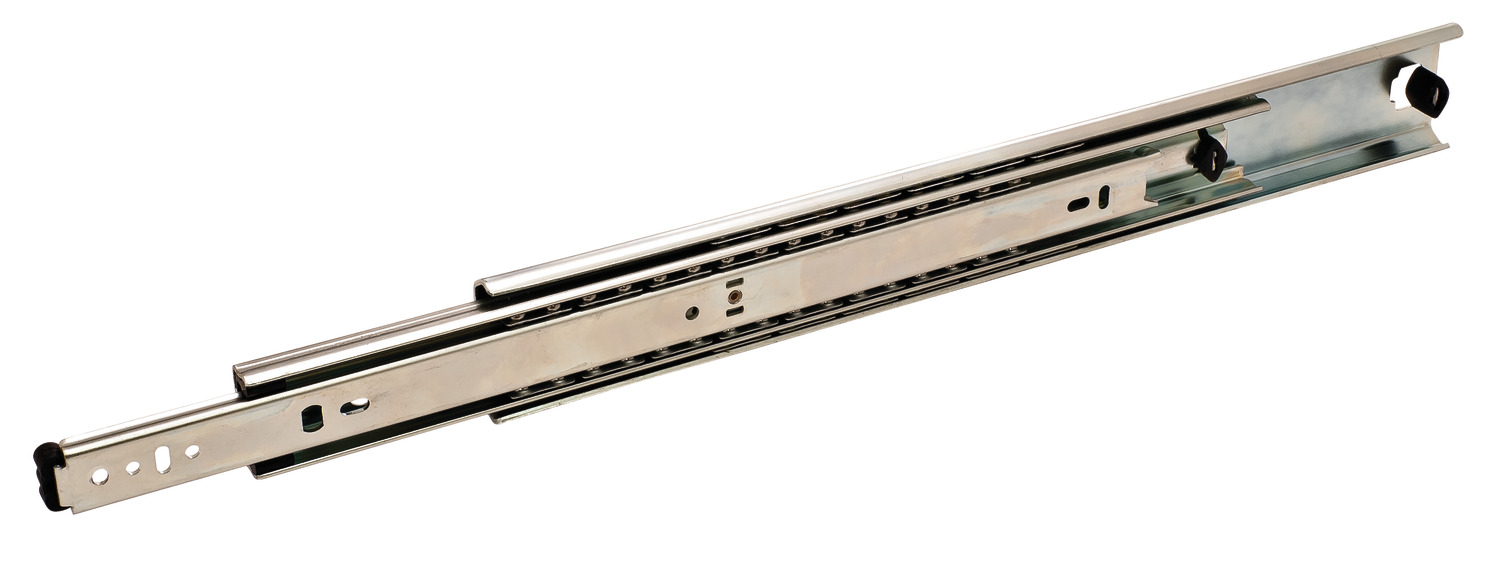

  Hafele 422.05.125 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity
  P Pack; 20"; Model C3634-C20ECP



  Model series : 3634EC

  Mounting : Side or flat mount

  Load bearing capacity : Per pair: (150 lb) 68 kg

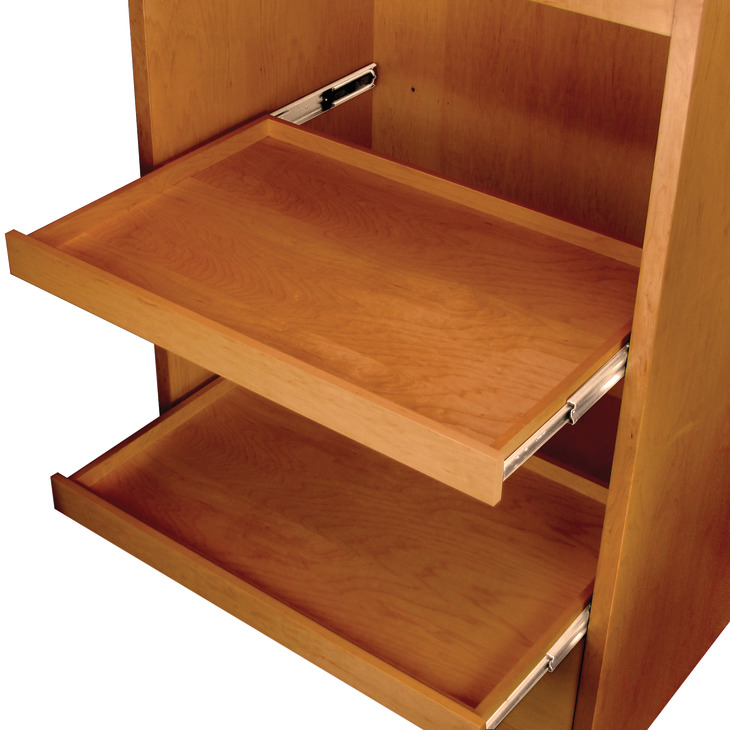

  Suitable for : Wider drawers and trays used for storage in retail fixtures, restaurants, medical facilities and business offices as well as residential kitchens, garages and more

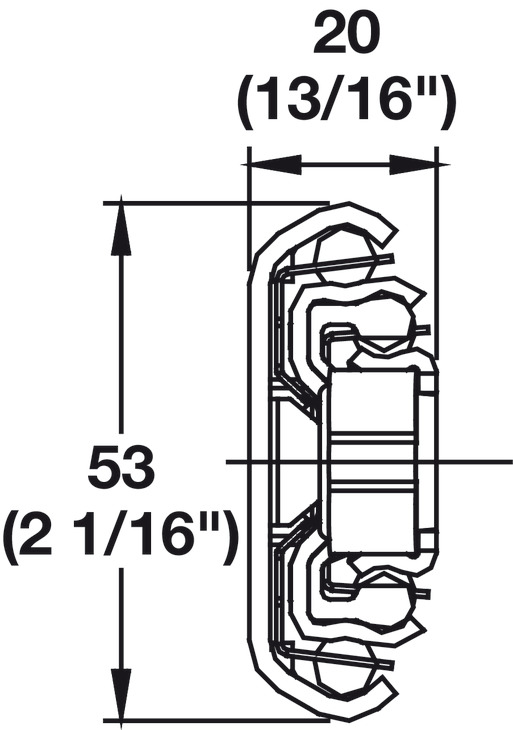

  Height : (2.09") 53.1 mm

  Width : (.78") 19.8 mm

  Travel : Over travel: (1") 25.4 mm

  Material : Steel

  Finish : Zinc-plated

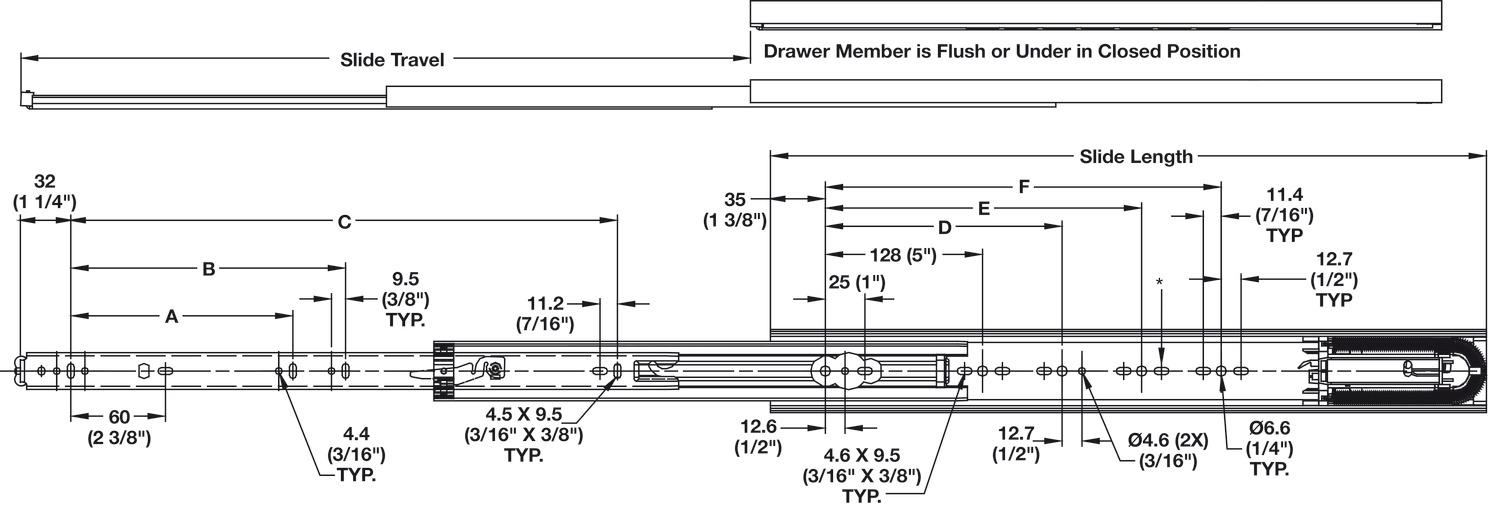

  A : 142 mm

  B : 333 mm

  C : 400 mm

  D : 224 mm



  Order reference :

  • D Pack - Polybag includes one pair of slides with moutning screws.
  • P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.70-8.70.pdf
