Hafele 422.05.122 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity P Pack; 14"; Model C3634-C14ECP

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.05.122

  Product Title: Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity, P Pack; 14"; Model C3634-C14ECP

  Category: Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity,

  Item Details …

  - Easy-close feature brings drawers to a smooth, gentle close. This mechanism is a more robust design intended for wider drawers and heavier loads up to 175 lbs.

  - Out stop silenced for quiet operation.

  - 1� over travel for full access to drawer contents

  - Accommodates drawers up to 42� wide to expand potential applications

  - .78� cross-section width

  - Lever disconnect allows for easier drawer removal and reinsertion

  - Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2� or 3/4� side space.

  - Slides are unhanded, which also helps speed and ease of installation

  - RoHS compliant

  - Side space: .78 + .000/-.02 [19.8 mm +0/-.5]

  - Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening

  - Disconnect: Handed lever disconnect

  - Easy-close feature brings drawers to a smooth, gentle close

  - 14� is full travel

  - Extension length : 356.00 mm

  - Load bearing capacity : Per pair: 175 lbs

  - Mounting : Side or flat mount

  - Color/finish : Zinc-plated

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 53.10 mm

  - Width (inch) : .78"

  - Height : 19.80 mm

  - Height (inch) : 10 3/8"

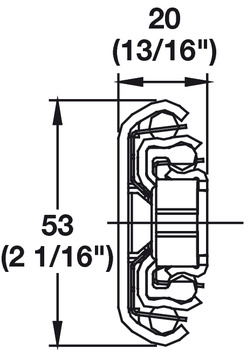

  - Dim. (W x H) : 53.1 x 19.8 mm

  - Installation : Side or flat mount

  - Load bearing capacity per pair : 79.00 kg

  - Order reference

  - D Pack - Polybag includes one pair of slides with moutning screws.

  - P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
