Hafele 422.05.109 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity D Pack; 28"; Model C3634-C28ECD
Product Information
Description
Hafele 422.05.109 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity

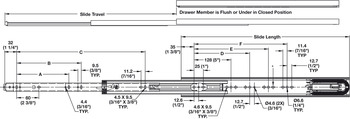

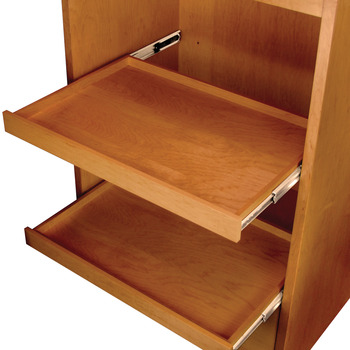

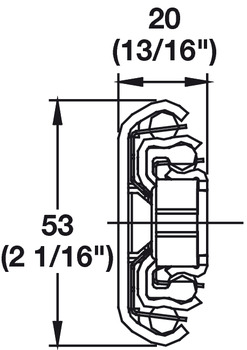

D Pack; 28"; Model C3634-C28ECDModel series : 3634EC Mounting : Side or flat mount Load bearing capacity : Per pair: (150 lb) 68 kg Suitable for : Wider drawers and trays used for storage in retail fixtures, restaurants, medical facilities and business offices as well as residential kitchens, garages and more Height : (2.09") 53.1 mm Width : (.78") 19.8 mm Travel : Over travel: (1") 25.4 mm Material : Steel Finish : Zinc-plated A : 142 mm B : 330 mm C : 603 mm D : 224 mm E : 352 mm F : 480 mm Order reference : - D Pack - Polybag includes one pair of slides with moutning screws.
- P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
