Hafele 421.68.390 Accuride Motorized TV Lift, For TVs up to 50", 120 lbs. Accuride CB Lift 050 - Quick Lift

Product Information

• Description

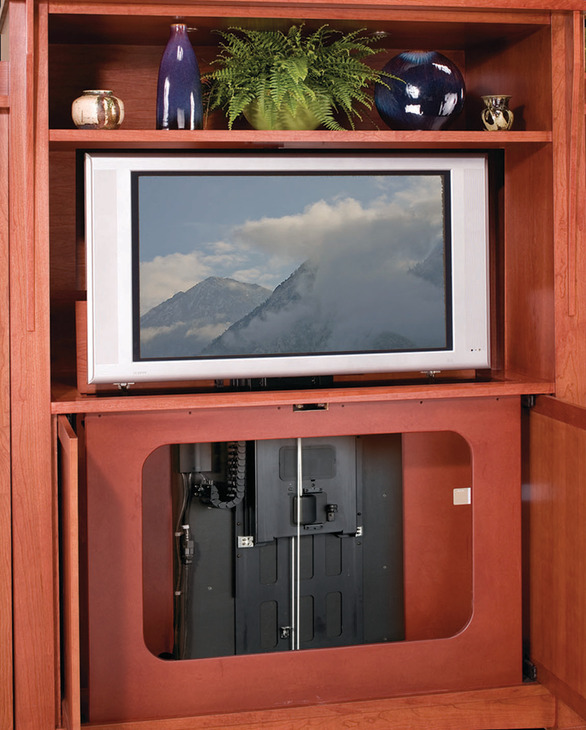

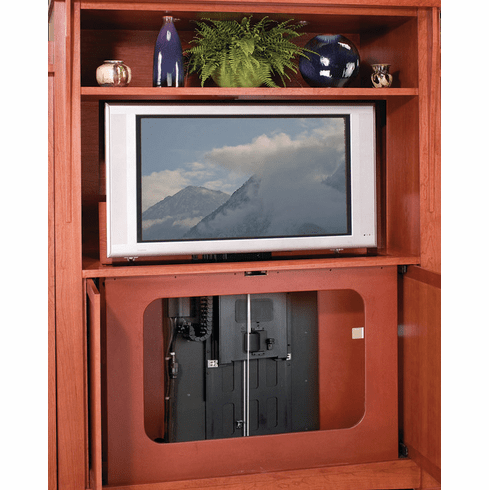

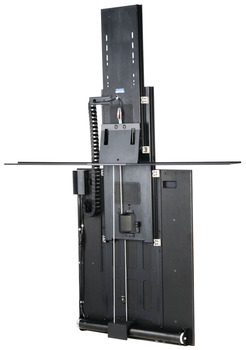

  Hafele 421.68.390 Accuride Motorized TV Lift, For TVs up to 50", 120 lbs.
  Accuride CB Lift 050 - Quick Lift



  Model : CBLIFT-050

  Model : CBLIFT-050

  Features : Maximum TV dimensions: 50�� diagonal, 33 1/2�� high

  Load bearing capacity : (120 lbs) 54 kg

  Mounting : Hole and slot pattern accommodates a wide variety of TV mounting brackets

  Installation : Pre-mounted to backboard for easy installation

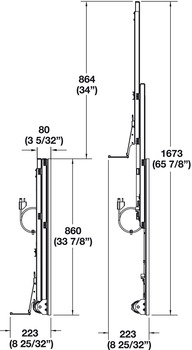

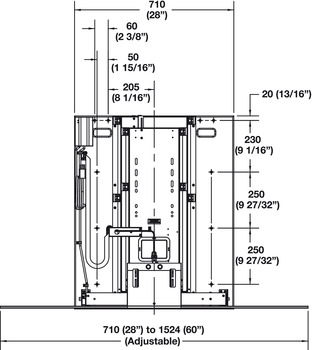

  For inside cabinet height : min: Overlay: (34") 864 mm; Inset: (34 3/4") 883 mm

  For internal cabinet depth : min. (10") 254 mm

  For inside cabinet width : min. (28") 711 mm

  Material : Steel

  Color : Black



  Supplied with :

  Remote control

  Screws



  Optional items:
  Fixed Lid Bracket Kit, for Accuride Motorized Lift (421.68.390)


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.41-4.44.pdf

  Hafele 421.68.390, 421-68-390, 42168390, 421.68
