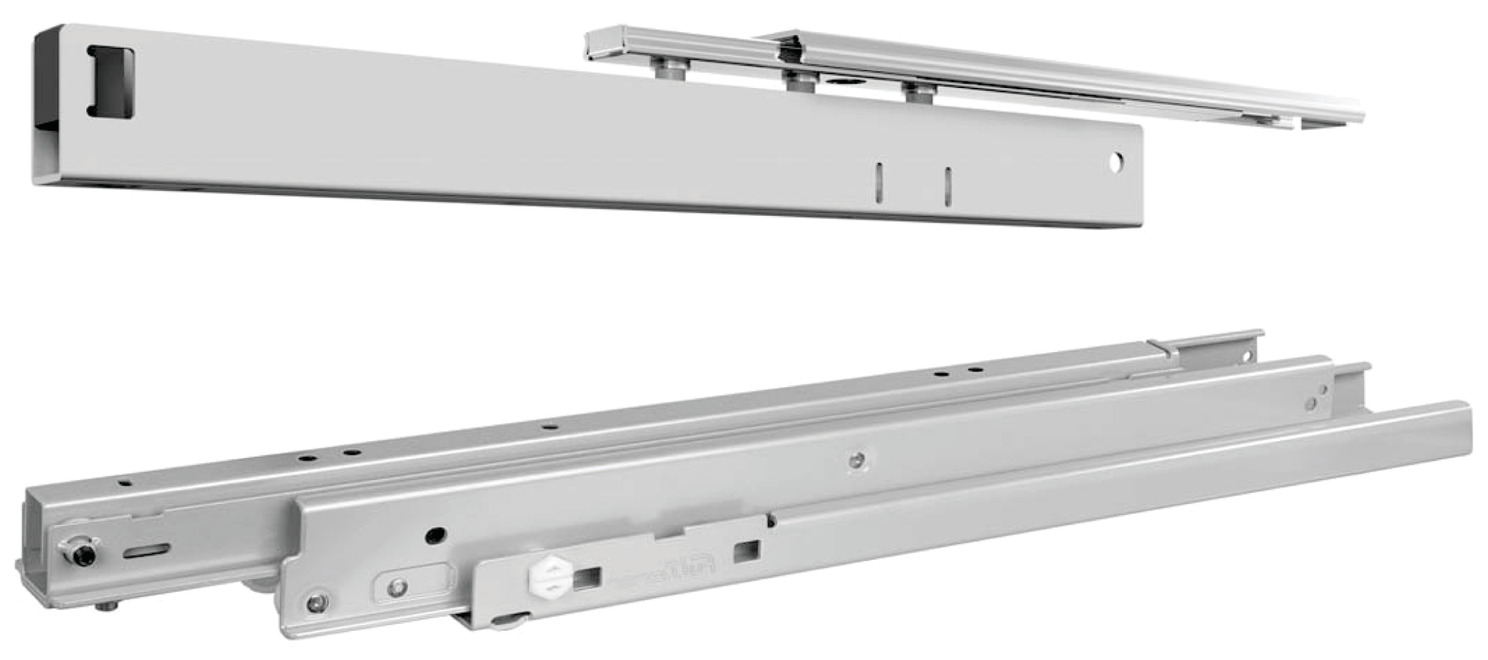

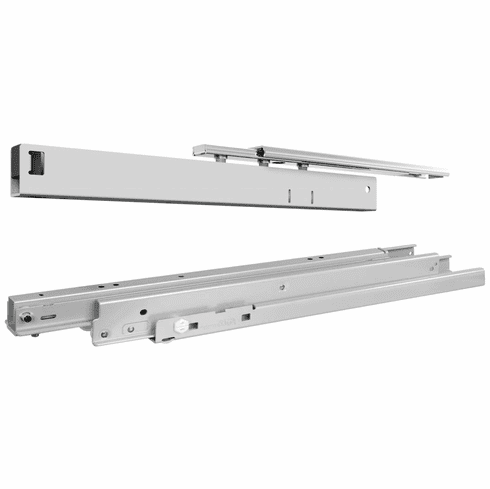

Hafele 421.46.958 Top/Bottom Mounted Cabinet Slide, Full Extension, 275 lbs Weight Capacity

Product Information

• Description

  Hafele 421.46.958 Top/Bottom Mounted Cabinet Slide, Full Extension, 275 lbs Weight Capacity




  Load bearing capacity : (275 lbs) 125 kg

  Mounting : Top/Bottom Mounted

  Type of pull out : Full extension

  Type of closing : Soft & silent with rear stop

  Adjustment : Horizontal and vertical adjustment

  Cabinet height : Max. (72") 829 mm

  Cabinet width : Max: (18") 457 mm

  Length : Side: (22 5/8") 575 mm

  Material : Slides: Steel
  Rollers: Delrin

  Finish : Powder-coated silver

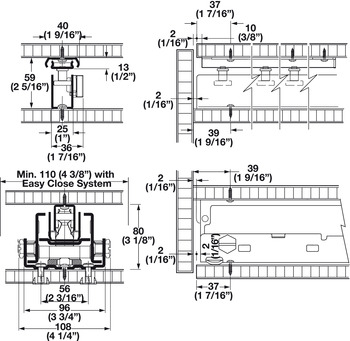

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.93-8.93.pdf

  Hafele 421.46.958, 421-46-958, 42146958, 421.46


  Specifications/Hafele Catalog - Page# FC8.89: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
