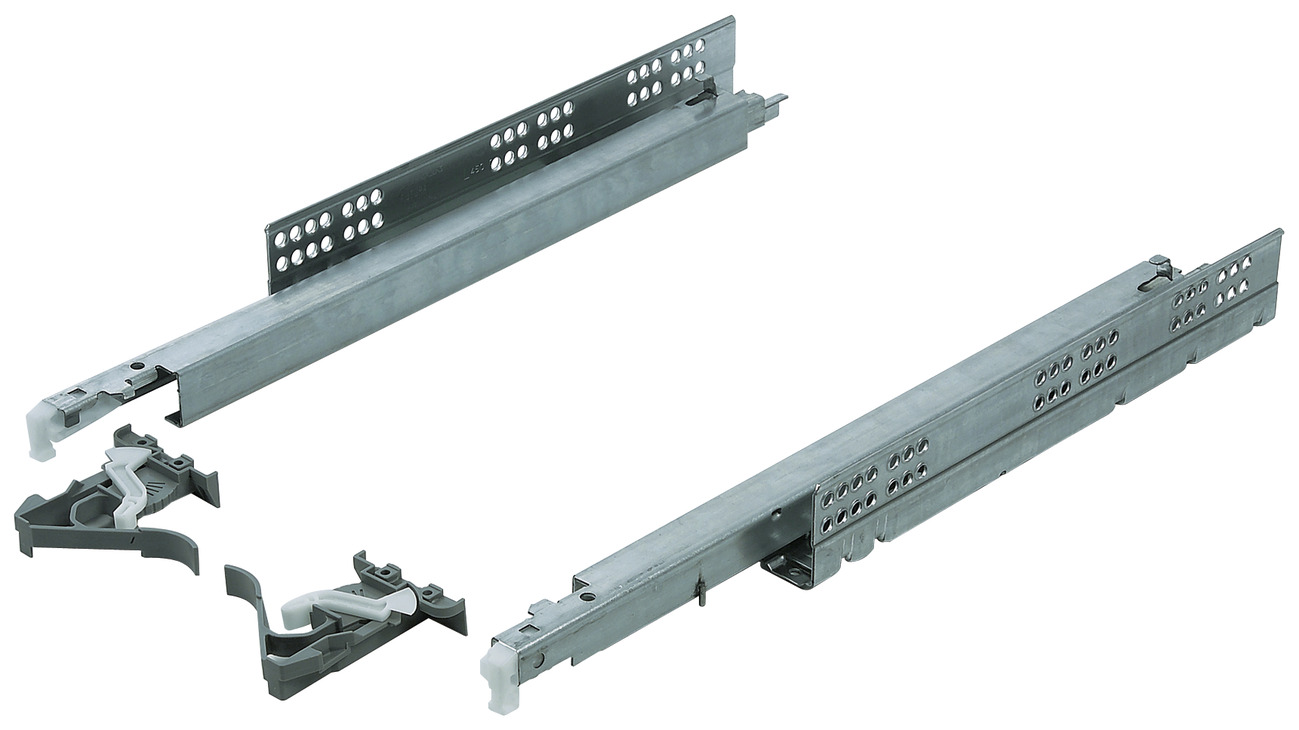

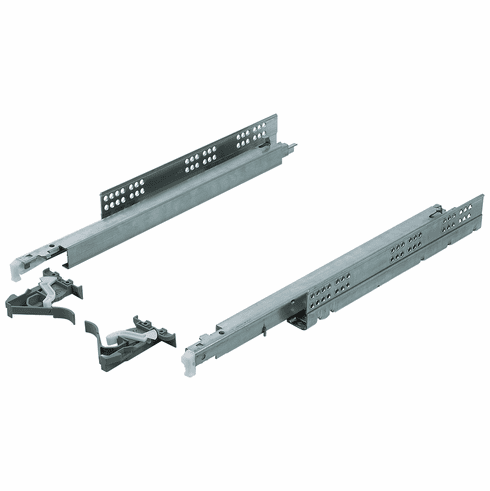

Hafele 421.23.860 Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs length: 600 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.23.860

  Product Title: Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs, length: 600 mm

  Category: Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs,

  Item Details …

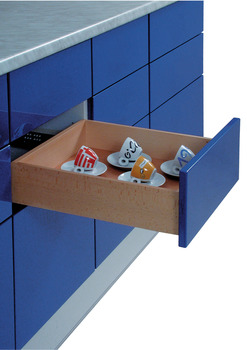

  - Slight pressure on the drawer front opens the drawer

  - “Push” mechanism is fully integrated into the slide

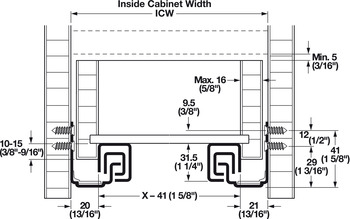

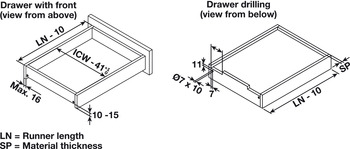

  - For drawer with front application, the setback is 2 mm plus the thickness of the drawer box material unless the drawer is notched. If it is notched, the setback, the setback is 2 mm.

  - Front clip disconnect for easy drawer insertion and removal

  - Nominal length : 300.00 mm

  - Model series : A6557 Futura Push Frameless Mounted

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Push to open

  - Load bearing capacity : 22.68 kg

  - Load bearing capacity : Per pair: 50 lbs

  - Adjustment facility : Height adjustment + 2.5 mm

  - Material : Steel

  - Color/finish : Zinc

  - Mounting : Frameless

  - Installation : Frameless

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.61



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.29-8.31.pdf

  Hafele 421.23.860, 421-23-860, 42123860, 421.23


  Specifications/Hafele Catalog - Page# FC8.16: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Six-Way Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Orange, 6-way adjustable

    421.23.001

    Click to order



  Height Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Gray

    421.23.000

    Click to order
