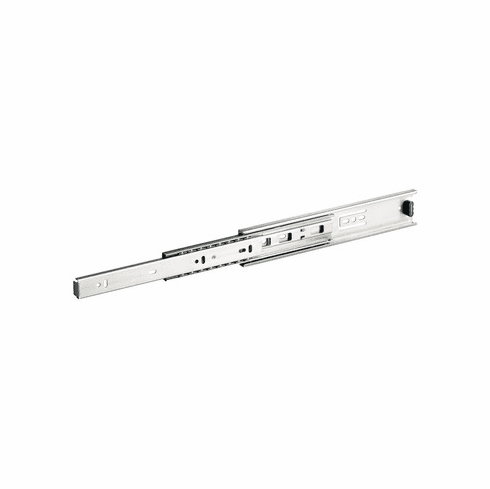

Hafele 420.43.035 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity 14" Length, 108 lbs

Product Information

• Description

  Hafele 420.43.035 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity
  14" Length, 108 lbs



  Load bearing capacity : (108 lbs.) 49 kg

  Installation : 1/2" side space required

  Features : Lever disconnect

  Type of pull out : Full extension with hold-in detent

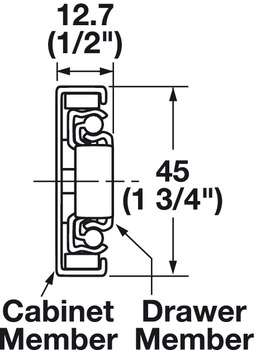

  Profile height : (1 3/4") 45 mm

  Material : Stainless steel

  Quality : 1.4301/AISI 304

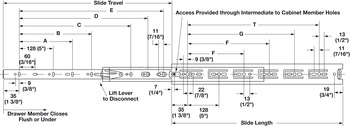

  E : (11 1/2") 292 mm



  Optional items:
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.81-8.82.pdf

  Hafele 420.43.035, 420-43-035, 42043035, 420.43


  Specifications/Hafele Catalog - Page# FC8.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
