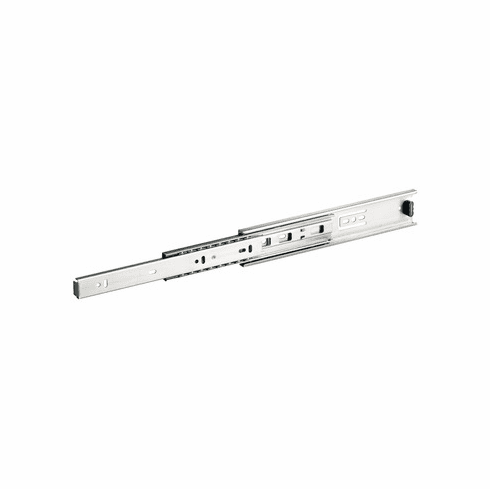

Hafele 420.43.030 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity 12" Length, 111 lbs

Product Information

• Description

  Hafele 420.43.030 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity
  12" Length, 111 lbs



  Load bearing capacity : (111 lbs.) 50 kg

  Installation : 1/2" side space required

  Features : Lever disconnect

  Type of pull out : Full extension with hold-in detent

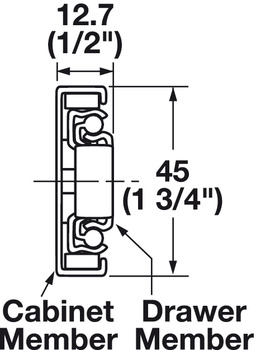

  Profile height : (1 3/4") 45 mm

  Material : Stainless steel

  Quality : 1.4301/AISI 304

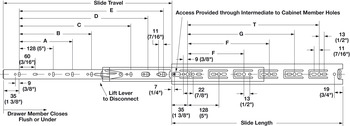

  E : (9 1/2") 242 mm



  Optional items:
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.81-8.82.pdf

  Hafele 420.43.030, 420-43-030, 42043030, 420.43


  Specifications/Hafele Catalog - Page# FC8.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
