Hafele 406.02.082 Coplanar Door, EKU Frontino 20 H FS OL for Upper Cabinets, Complete Set For internal cabient width: (5' 3" - 5' 10 13/16") 1600 - 1799 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 406.02.082

  Product Title: Coplanar Door, HAWA Frontino 20 H OS FB for Upper Cabinets, Complete Set, For internal cabient width: (5' 3" - 5' 10 13/16") 1600 - 1799 mm

  Category: Coplanar Door, HAWA Frontino 20 H OS FB for Upper Cabinets, Complete Set,

  Item Details …

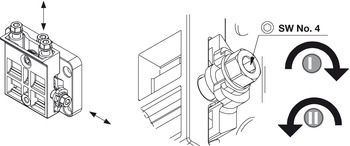

  - Two-way door adjustment

  - Pre-mounted running system allows for minimal installation time

  - Integrated soft opening and soft closing to prevent door slam

  - Doors slide smoothly and quietly, and sit flush when in the closed position

  - For door thickness : 19?–?25 mm

  - For door weight : ?20 kg

  - For door thickness max. : 1"

  - For door thickness min. : 3/4"

  - Door weight max. : 44 lbs

  - Weight (pound) : Max: 44 lbs.

  - Set : Set without tracks

  - For door height : ?1,000 mm

  - Material/finish : AluminiumRollers: Plastic

  - Type of opening : flush

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.60
