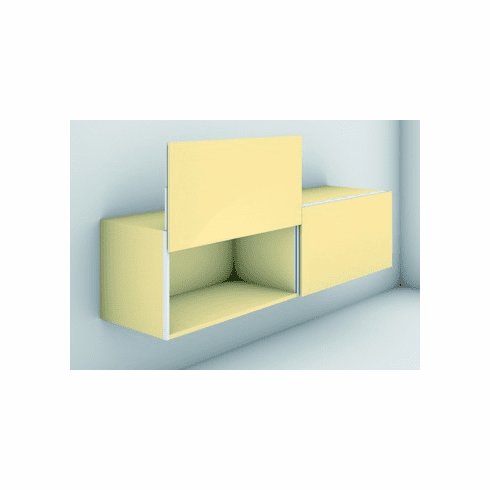

Hafele 403.25.041 Vertical Sliding Door Hardware, Mover System For one door, Cabinet height: 23 5/8", door width: 35 1/2", door weight: 13.2-17.6 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 403.25.041

  Product Title: Vertical Sliding Door Hardware, Finetta F-Line32 23A, For one door, Cabinet height: 23 5/8", door width: 35 1/2", door weight: 13.2-17.6 lbs

  Category: ,

  Item Details …

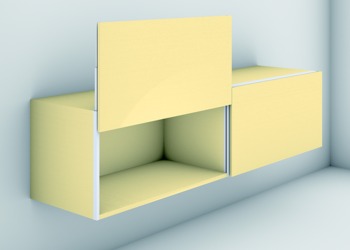

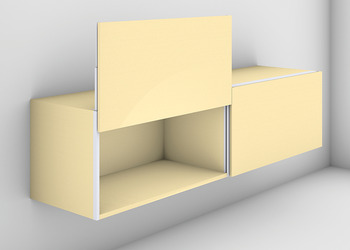

  - Particularly suitable for kitchen wall units

  - Fittings are positioned only in front of the cabinet

  - For single door vertical sliding applications

  - Opening and closing controlled by torsion spring

  - Counterweights are not required

  - The door stops and stays in place in any position

  - Mechanism is contained within load-bearing side aluminum beams

  - Number of doors : 1.00

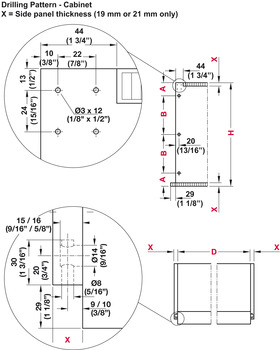

  - For side panel thickness : 19/20 mm

  - Cabinet version : kitchen cabinets

  - Set : Set with tracks

  - Area of application : For 1 doors

  - Adjustment facility : Height adjustment: -3β€Šβ€“β€Š3 mm, Vertical: Β±3 mm (1/8")

  - Counterweight : No counterweight required

  - Type of opening : linear

  - Number of doors per system max. : 1

  - Supplied with:

  - 1 supporting aluminum profile

  - 1 pair of sliding track, extending

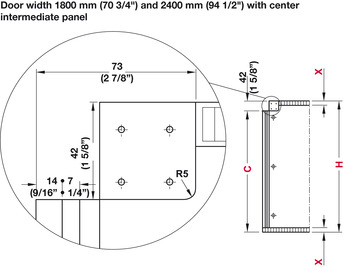

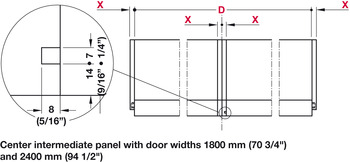

  - 1 sliding track for center intermediate panel (only for door widths 1,800 (70 3/4”) and 2,400 mm (94 1/2”))

  - Mounting material


  Additional Information …

  The 480 mm (19”) version is a special order and will have a longer lead time
