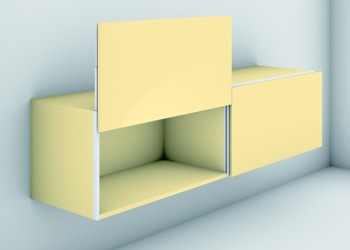

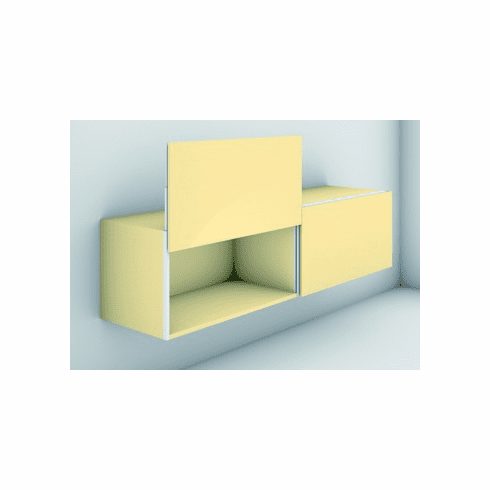

Hafele 403.25.040 Vertical Sliding Door Hardware, Mover System For one door, Cabinet height: 18 7/8", door width: 35 7/16", door weight: 13.2-17.6 lbs

Product Information

• Description

  Hafele 403.25.040 Vertical Sliding Door Hardware, Mover System
  For one door, Cabinet height: 18 7/8", door width: 35 7/16", door weight: 13.2-17.6 lbs



  Cabinet height : (18 7/8") 480 mm

  Door width : (35 1/2") 900 mm

  Door weight : (13.2-17.6) 6-8 kg

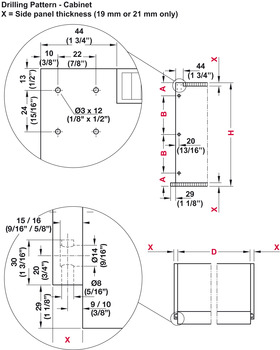

  Side panel thickness : 19/20 mm

  Side panel thickness : 19/20 mm

  Adjustment : Vertical: �3 mm (1/8")

  Note :

  The 480 mm (19��) version is a special order and will have a longer lead time



  Application : For 1 doors

  Door weight : (13.2-17.6) 6-8 kg

  Cabinet height : (18 7/8") 480 mm

  Door width : (35 1/2") 900 mm



  Supplied with :

  1 supporting aluminum profile

  1 pair of sliding track, extending

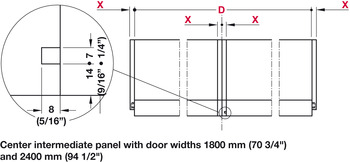

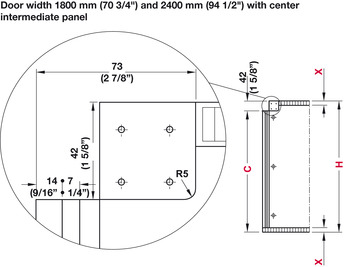

  1 sliding track for center intermediate panel (only for door widths 1,800 (70 3/4��) and 2,400 mm (94 1/2��))

  Mounting material





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.90-7.91.pdf



  Please contact us for more information about this product
