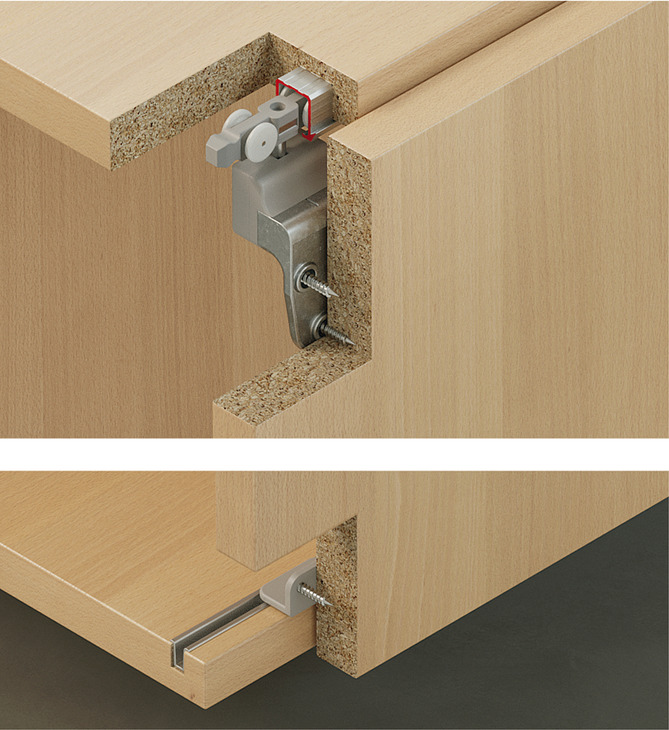

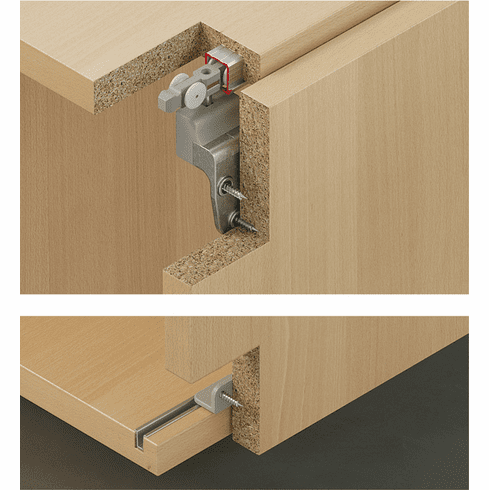

Hafele 402.33.031 Sliding Door Hardware, Slido Classic 20 VF C, set For cabinets with 1 wooden door, for door weights up to 20 kg, for door heights up to 1,400 mm, For 1 Door, with Dual Soft Closing on Door
Product Information
Description
Hafele 402.33.031 Sliding Door Hardware, Slido Classic 20 VF C, set
For cabinets with 1 wooden door, for door weights up to 20 kg, for door heights up to 1,400 mm, For 1 Door, with Dual Soft Closing on Door
Additional items required to complete installation:
Single running track, Slido Classic 12 IF & VF C
Single Top Running Track, Top, for screw fixing
Lower Guide Channel, Slido Classic 12 IF & VF CFor 1 door Door height : Max. (4' 7 1/8") 1400 mm Door width : ‰¤1,250 mm
min. 350 mm with soft closing mechanism on one side, min. 530 mm with soft closing mechanism on both sidesDoor thickness : (5/8" - 3/4") 16 - 19 mm Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track Material : Running gear and guide: Plastic; mounting plate: Zinc alloy Running gear : Top running, 4 rollers Running gear guided by : Friction bearing mounted roller: Plastic, axle: Steel Adjustment : Height ±2 mm on running gear using adjusting wheel Installation : Mounting plate for screw fixing, running gear for sliding in and screw fixing, guide for screw fixing to door Order reference : Please order running and guide tracks separately.
Optional items:
Flathead Screw, Slido ClassicCatalog Pages
