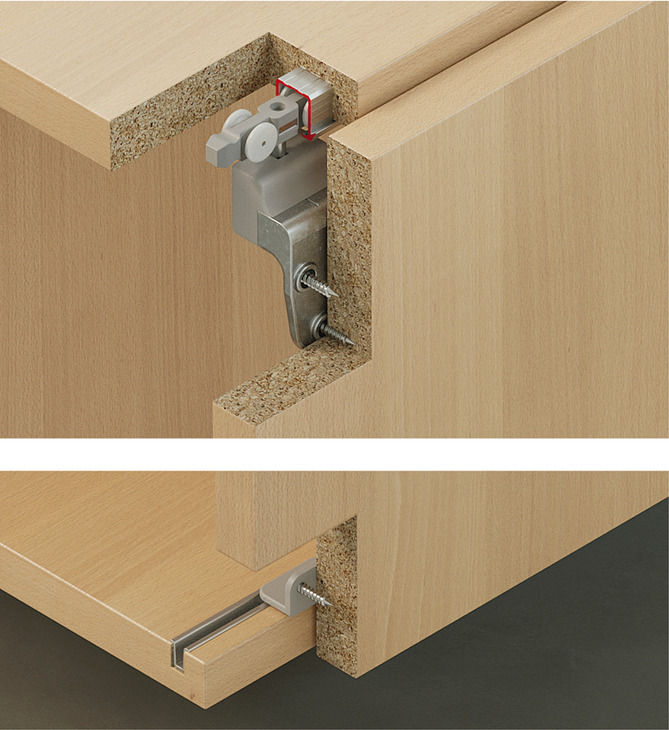

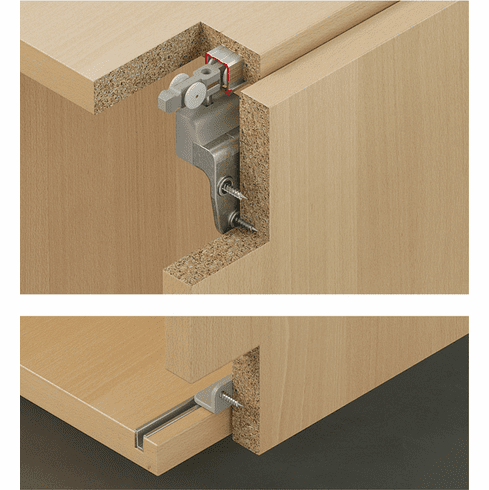

Hafele 402.33.029 Sliding Door Hardware, Slido Classic 20 VF C, set For cabinets with 1 wooden door, for door weights up to 20 kg, for door heights up to 1,400 mm, For 1 Door, with track stopper

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.029

  Product Title: Sliding Door Hardware, Slido F-Line21 20A, set, For cabinets with 1 wooden door, for door weights up to 20 kg, for door heights up to 1,400 mm, For 1 Door, with track stopper

  Category: Sliding Door Hardware, Slido F-Line21 20A, set, For cabinets with 1 wooden door, for door weights up to 20 kg, for door heights up to 1,400 mm

  Item Details …

  - Number of doors : 1.00

  - For door thickness : 16?–?19 mm

  - For door weight : ?20 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 3/4"

  - Door width max. : Max: 4' 1 3/16"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs.

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Set : Set without tracks

  - Area of application : For 1 door

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track

  - Material/finish : Running gear: PlasticGuide: PlasticMounting plate: Zinc alloyRollers: PlasticAxis: Steel

  - Adjustment facility : Height ±2 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

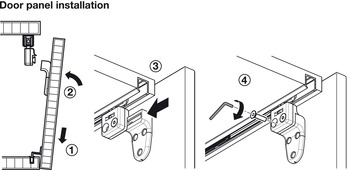

  - Installation : Guide for screwing to door wing, Running gear for slide-in and screw fixing, Mounting plate for screw fixing

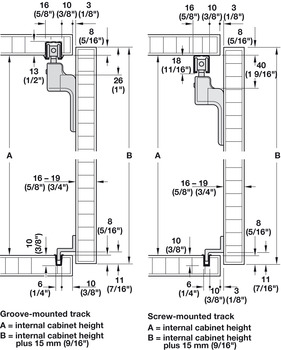

  - Installation reference : The dimensions 48/70 are increased by 14 mm when mounting tracks for screw fixing.Dimensions that are measured from the outer edge of the door must be adapted accordingly where doors overlap the side panel.

  - Number of doors per system max. : 1

  - Order reference

  - Please order running and guide tracks separately.

  - Supplied with:

  - 2 running gears

  - 2 door stoppers with clip-in door stopper

  - 2 guides

  - 1 inspection support

  - 1 mounting aid

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Line21 20A Mounting Instructions

  LGA quality certificate for Slido F-Line21 20 A/B/C/D/F/H.pdf

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.23



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single running track, For Slido F-Line21 (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, mill, 2.5 m length for Slido Classic IF/MF/VF, Slido Design IF, mill, 3.5 m length

    402.33.642 402.33.643

    Click to order Click to order



  Single Top Running Track, For Slido F-Line21 (choose one):


  • for Häfele Slido F-Line21, 8' 2 7/16" for Häfele Slido F-Line21, silver colored anodized, length: 3,500 mm, aluminum

    402.30.642 402.30.643

    Click to order Click to order



  Lower Guide Channel, Bottom, with harpoon-type flanges, for press fitting and glue fixing (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, Length: 8' 2 7/16" for Slido Classic IF/MF/VF, Slido Design IF, Length: 11’ 5 13/16”

    402.30.802 402.30.803

    Click to order Click to order



  Optional Accessories:



  • Flathead screw, Slido Classic
