Hafele 356.11.480 Adapter for SMOVE, Double Doors with Lip Salice, D070SNBN Beige

Product Information

• Description

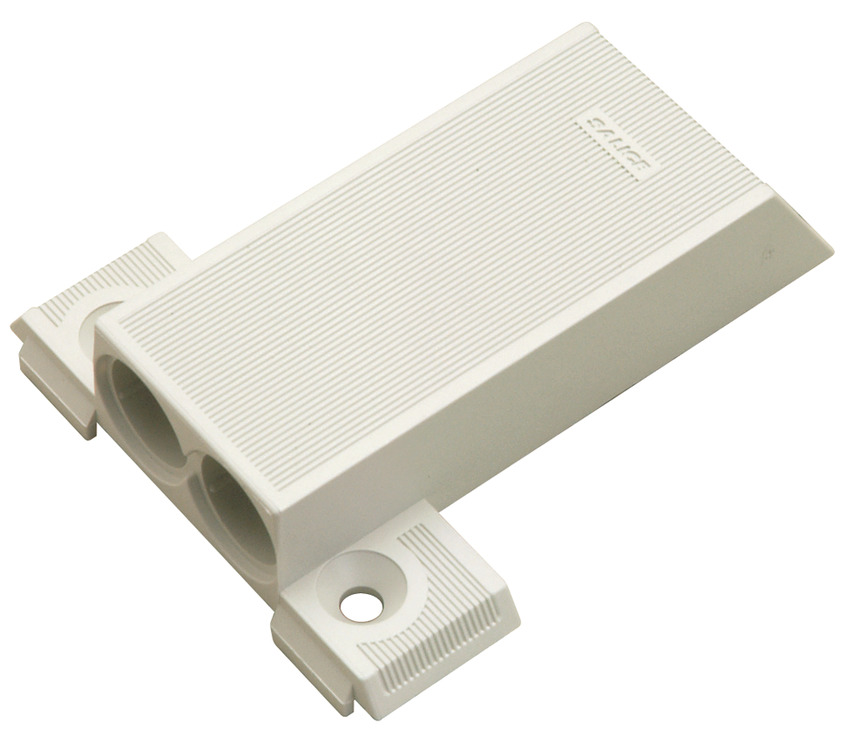

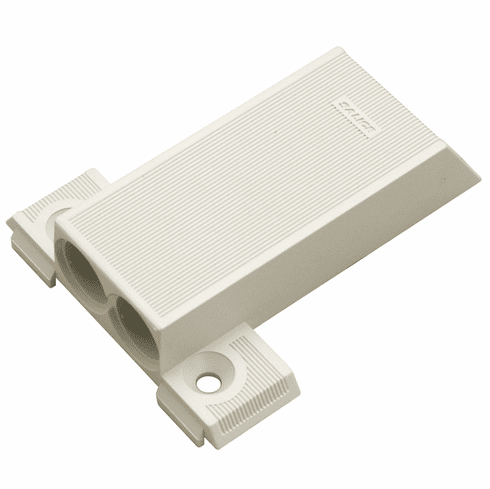

  Hafele 356.11.480 Adapter for SMOVE, Double Doors with Lip
  Salice, D070SNBN Beige



  Model : D070SNBN

  Color : Beige

  Application : For double doors with lip

  Material : Plastic

  Mounting : For screw fixing

  Installation : 1. Clean and de-grease the cabinet surface where the adapter is to be installed using denatured alcohol or an acetone based cleaner.
  2. Remove the protective strip from the adhesive.
  3. Place the adapter in position and apply a firm pressure for about one minute.
  4. Insert SMOVE into the adapter.
  5. Allow a period of 12 hours to elapse before using



  Optional items:
  Drill Bit


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.45-9.46.pdf

  Hafele 356.11.480, 356-11-480, 35611480, 356.11


  Specifications/Hafele Catalog - Page# FC9.79: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
