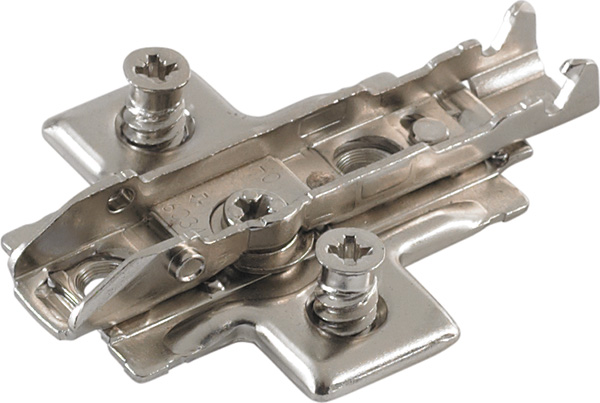

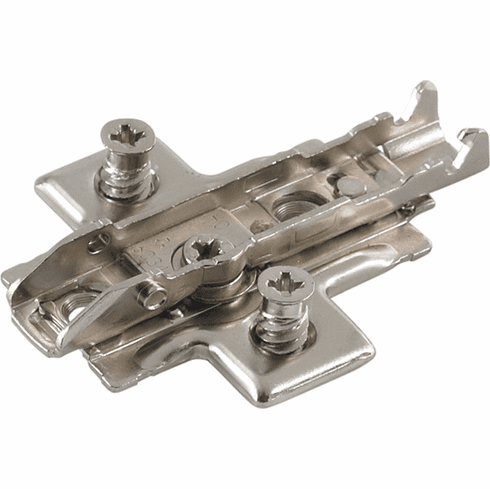

Hafele 348.38.521 Wing Baseplate, Grass TIOMOs, 4-Point Fixing with Pre-Mounted Euro Screws Height 0 mm, model F058139761228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.521

  Product Title: Wing Baseplate, Grass TIOMOs, 4-Point Fixing with Pre-Mounted Euro Screws, Height adjustment via worm gear, Height 0 mm, model F058139761228

  Category: Wing Baseplate, Grass TIOMOs, 4-Point Fixing with Pre-Mounted Euro Screws, Height adjustment via worm gear

  Item Details …

  - Area of application : for Grass Tiomos concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

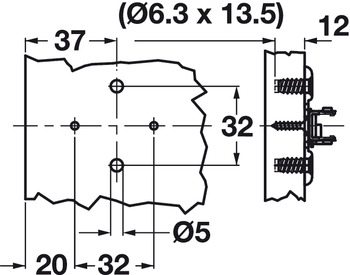

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 12.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Fixing method : clip system

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Grass

  - Model series : Tiomose

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.60



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf

  Hafele 348.38.521, 348-38-521, 34838521, 348.38
