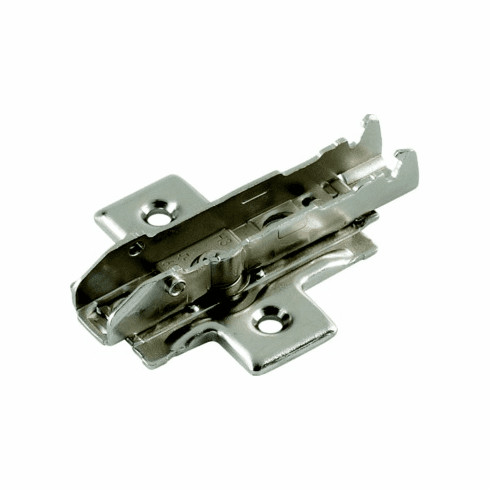

Hafele 348.38.513 Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws Height 3 mm, model F058139748228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.513

  Product Title: Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws, Height adjustment via worm gear, Height 3 mm, model F058139748228

  Category: Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws, Height adjustment via worm gear

  Item Details …

  - Area of application : for Grass Tiomos concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

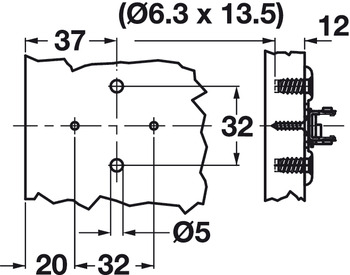

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Fixing method : clip system

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.60



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf

  Hafele 348.38.513, 348-38-513, 34838513, 348.38


  Specifications/Hafele Catalog - Page# FC9.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
