Hafele 348.36.730 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Full Plus Overlay Soft-Close, 45/9.5, Impresso, model F017139428228

Product Information

• Description

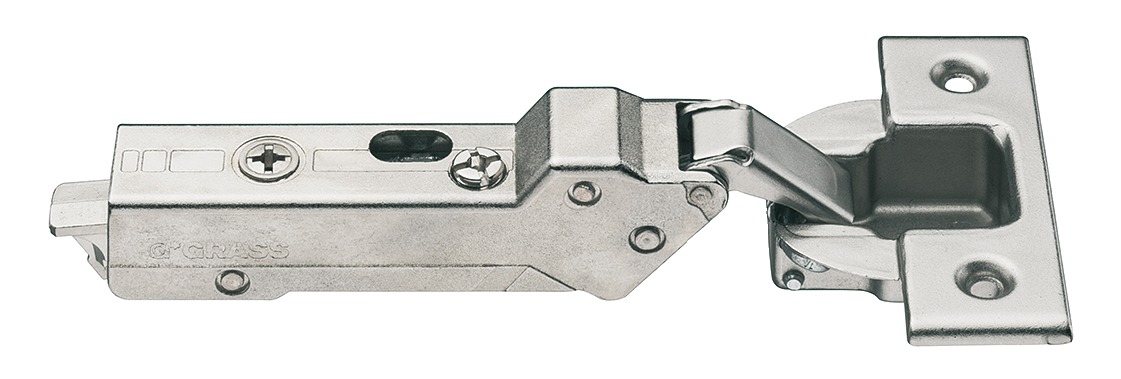

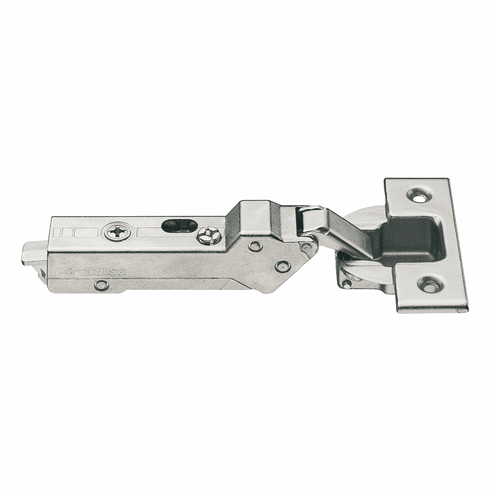

  Hafele 348.36.730 Concealed Hinge, Grass TIOMOS, 120� Opening Angle, Full Plus Overlay
  Soft-Close, 45/9.5, Impresso, model F017139428228



  Opening angle : 120 �

  Application : A hinge system for all door applications
  For large door overlay up to 24 mm

  Overlay : Full Plus

  Features : 3 soft close settings, invisibly integrated in arm

  Adjustment : Side adjustment from -2 to +2 mm
  Depth adjustment from -2 to +3 mm
  Height adjustment max. �2.5 mm depending on the mounting plate

  Material : Steel

  Note :

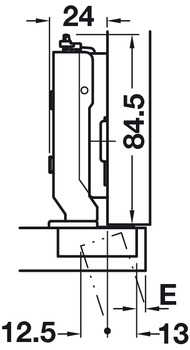

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32��).



  Note :

  Door overlay over 24mm possible, with side adjustments by �2 mm.
