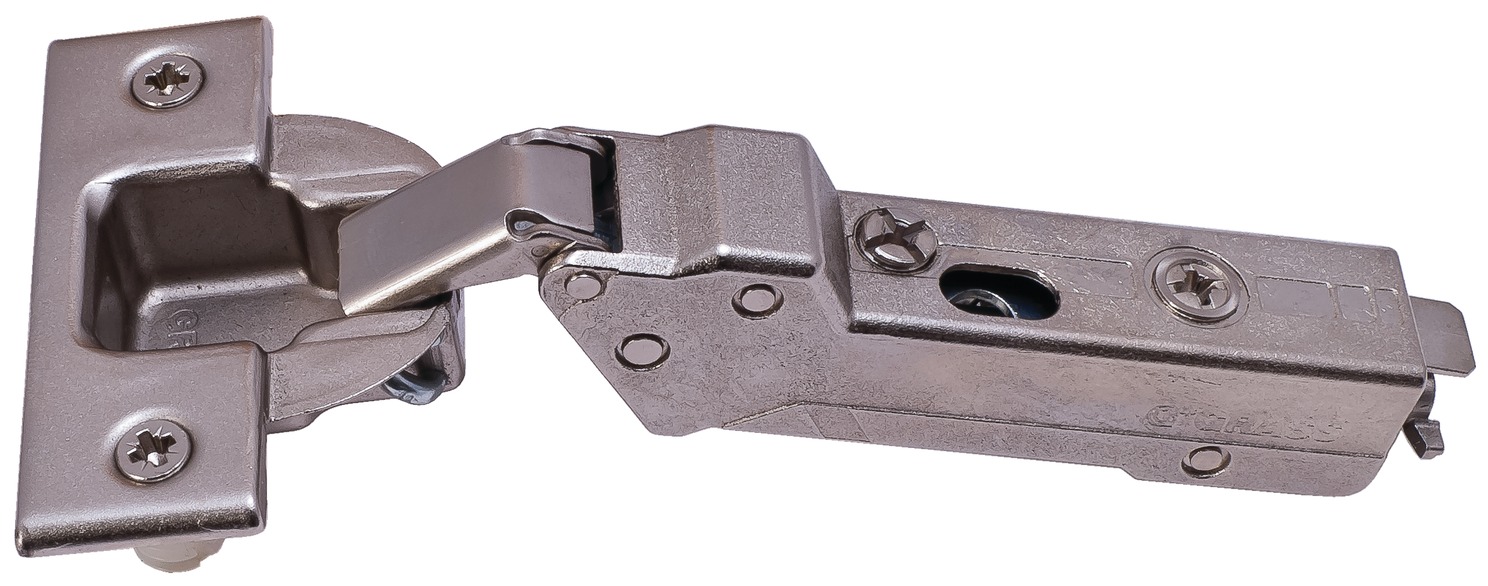

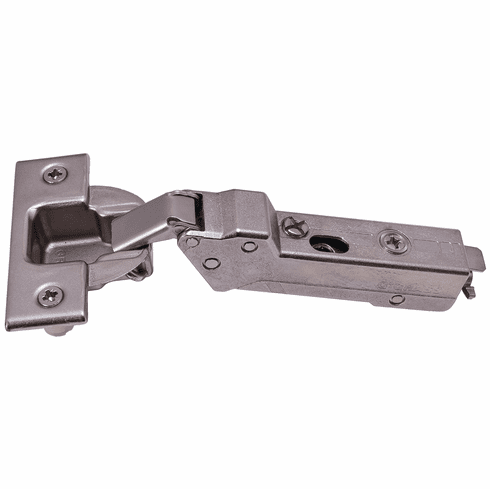

Hafele 348.36.612 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Half Overlay Self close, screw-on, model F045138491228
Product Information
Description
Hafele 348.36.612 Concealed Hinge, Grass TIOMOS, 120 Opening Angle, Half Overlay
Self close, screw-on, model F045138491228Opening angle : 120 Application : A hinge system for all door applications Overlay : Half Features : 3 soft close settings, invisibly integrated in hinge arm Adjustment : Side adjustment from -2 to +2 mm
Depth adjustment from -2 to +3 mm

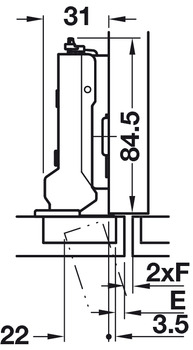

Height adjustment max. 2.5 mm depending on the mounting plateMaterial : Steel Note : The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32).
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.51-9.51.pdfHafele 348.36.612, 348-36-612, 34836612, 348.36 Specifications/Hafele Catalog - Page# FC9.50:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Hinges & Stays Catalog
Return to: All Hafele CatalogsDownload
