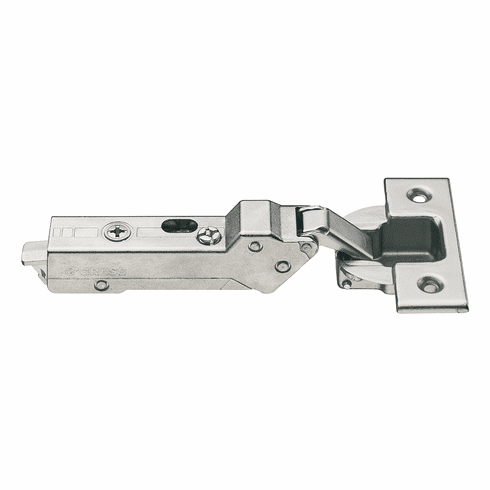

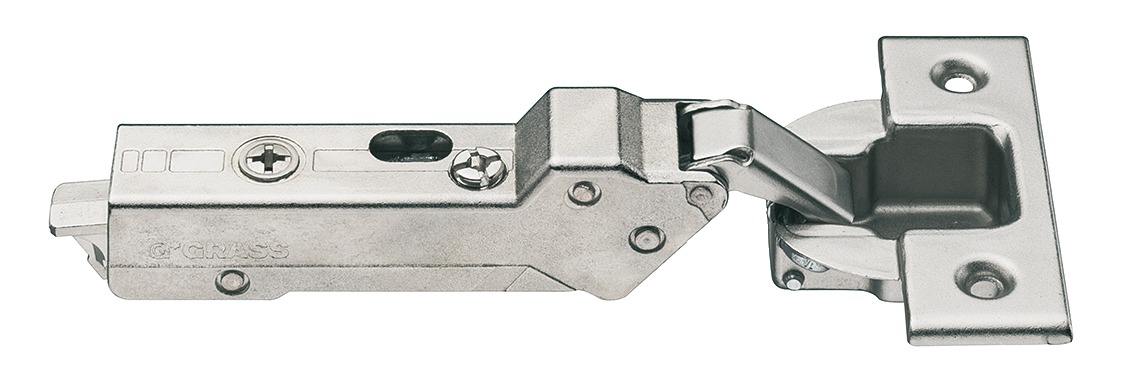

Hafele 348.36.530 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Full Plus Overlay Self-Close, 45/9.5, Impresso, model F034139399228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.36.530

  Product Title: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Full Plus Overlay, For standard applications with convenient opening angle, Self-Close, 45/9.5, Impresso, model F034139399228

  Category: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Full Plus Overlay, For standard applications with convenient opening angle

  Item Details …

  - Convenient opening angle with excellent overlay and gap dimensions up to 24 mm door thickness

  - with soft close integrated in hinge arm, with 3 settings

  - 3 soft close settings, invisibly integrated in hinge arm

  - Area of application : A hinge system for all door applicationsFor large door overlay up to 24 mm

  - Concealed hinge version : full overlay

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 120°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

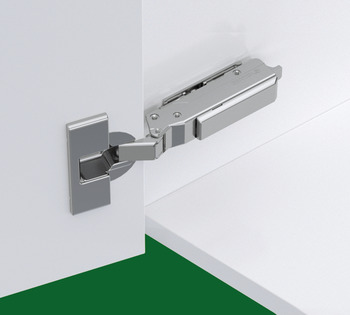

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

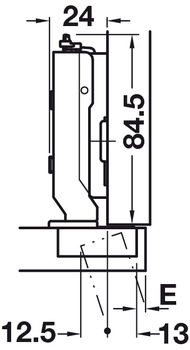

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32”).

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.51-9.51.pdf

  Hafele 348.36.530, 348-36-530, 34836530, 348.36


  Specifications/Hafele Catalog - Page# FC9.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
