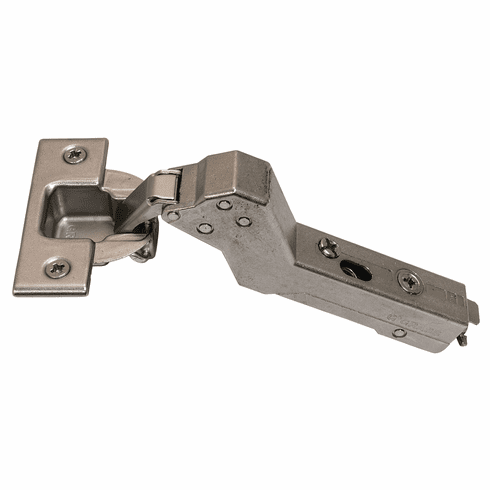

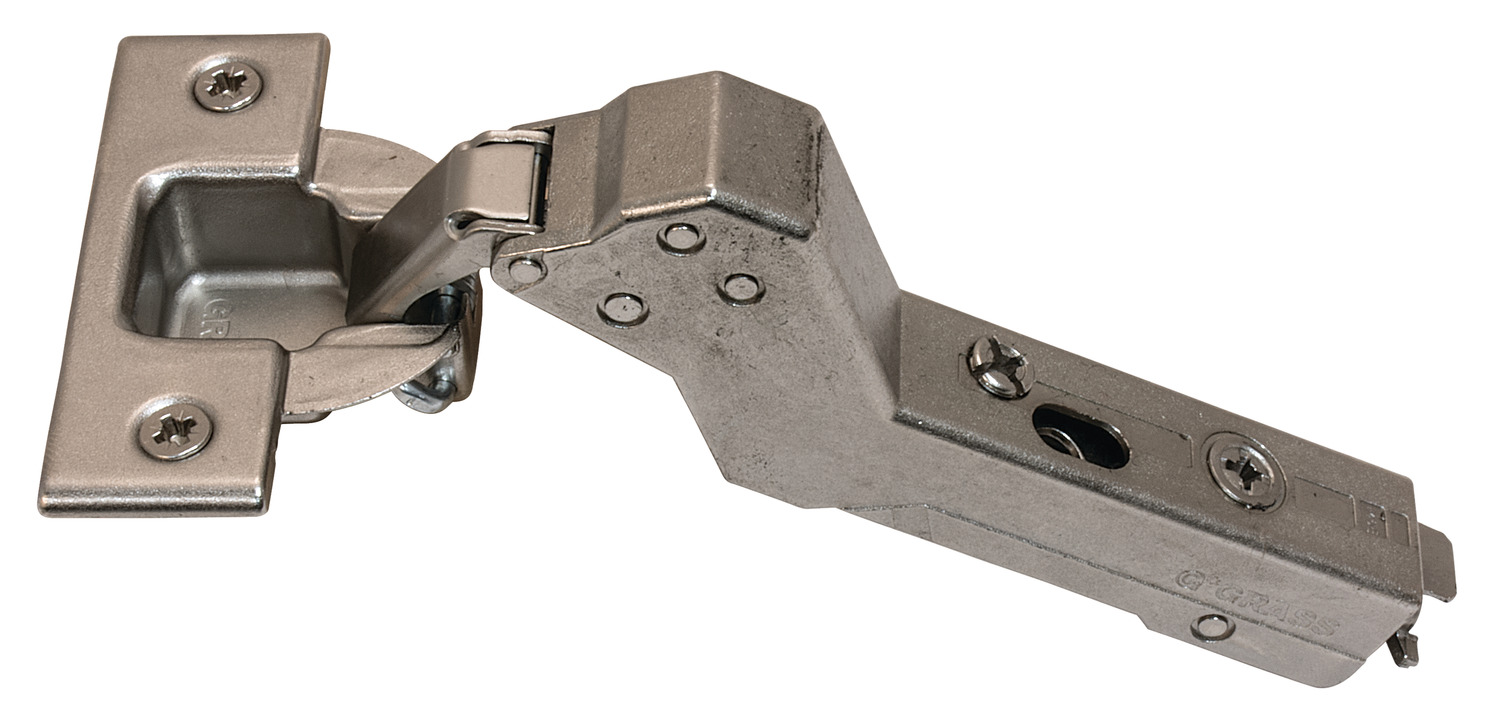

Hafele 348.35.816 Concealed Corner Hinge, 110 degree Opening Angle, Inset Soft-close, dowel fit, model F028138544223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.35.816

  Product Title: Concealed Corner Hinge, 110° Opening Angle, Inset, Soft-close, dowel fit, model F028138544223

  Category: Concealed Corner Hinge, 110° Opening Angle, Inset,

  Item Details …

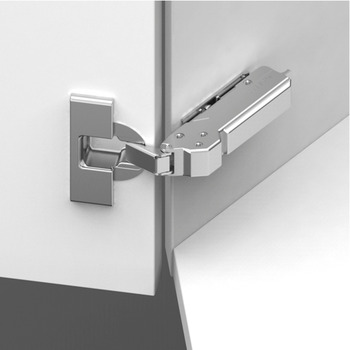

  - Area of application : For corner applications

  - Concealed hinge version : inset

  - Crank type : High Cranked

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Opening angle : 110°

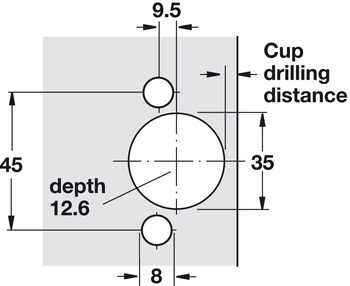

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.57



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws
